CAB01-4,0MBK SPW

SKU: CAB01-4,0MBK SPW

BRAND: Helupower

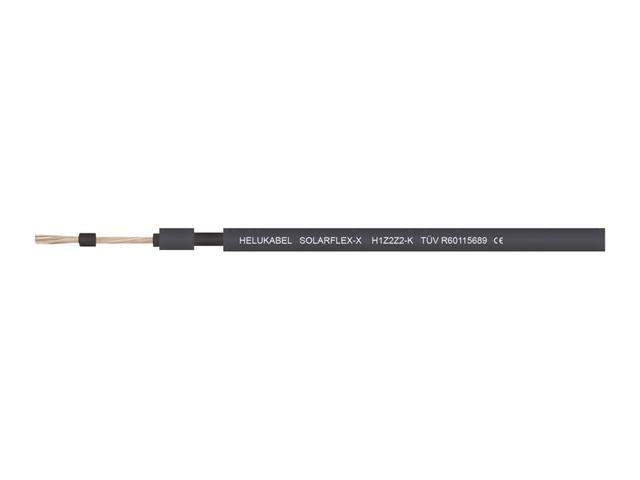

4mm Solar Panel Wire Multi-Strand Flexible Black Tinned Copper Double Insulated 1500VDC FRNC - (Price per meter)

4mm Solar Panel Wire Multi-Strand Flexible

Specifications

Technical data

    • Temperature range : -40°C to +90°C max. temperature at conductor +120°C
    • Nominal voltage : AC 1,0/1,0 kV, DC 1,5/1,5 kV
    • Maximum permitted voltage : 1,8kV DC
    • Test voltage : AC 6,5 kV
    • Minimum bending radius fixed installation 5x cable Ø

Cable structure

    • Tinned copper conductor, to DIN VDE 0295 cl.5, fine wire, IEC 60228 cl.5
    • Core insulation of special cross-linked compound

      Properties

    • The special outer sheath compound offers high abrasion resistance. It is UV stable, Flameretardant and ozone resistant.

Tests

  • Halogen-free acc. to EN 50267, IEC 60754
  • Flame retardant to IEC 60332-1-2
  • Smoke density to IEC 61034

Downloads

Additional Information

Device Wire
Type 4mm | Solar Panel | Multi-Strand | Flexible
Lenght 1 Meter
