CAB2170222

Name: CAB2170222 - Communica [Part No: CAB2170222]
Brand: Lapp Cable
SKU: CAB2170222
Price: 68.20 ZAR
Availability: InStock

SKU: CAB2170222

BRAND: Lapp Cable

R 78.43_{(inc VAT)}
R 68.20_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Wire & Cable

Type: Actuator/Sensor Cable

Category: Profibus Cable

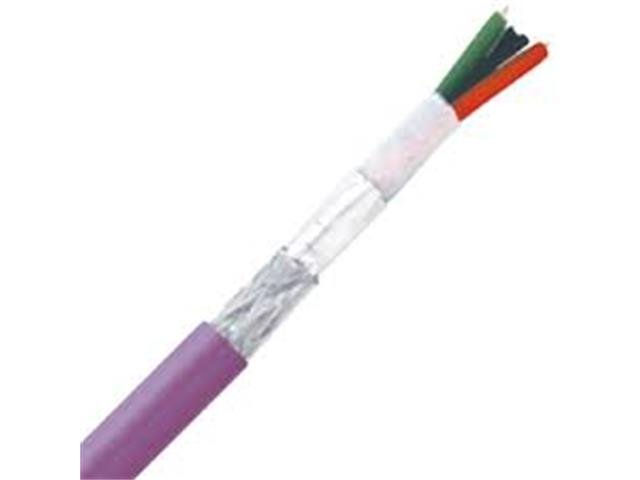

Profibus Cable - Unitronic BUS PB FD P 1X2X0,64 Highly flexible Stranded Data Cable for the SIEMENS Field-Net SINEC L2 DP

Highly Flexible Data Cable

Overview

The cable is intended for high flexible application in power chains,moving machines, linear robots.and wind turbines. With double screening it is suitable for installation in electromagnetically demanding areas. The PUR-sheath is very resistant against mineral oils and abrasion.

Specifications

Number of Cores : 2
Cross Sectional Area : 0.25 mm²
Screened/Unscreened : Screened
Sheath Colour : Purple
American Wire Gauge : 24 AWG
Outer Diameter : 8mm
Sheath Material : PUR
Standards Met : IEC 60332-1-2
Reference : UNITRONIC BUS PB FD
Maximum Operating Temperature : +70°C
Screen Type : Copper Braid
Conductor Material : Bare Copper
Minimum Bend Radius : 65 mm
Voltage Rating : 250 V
Conductor Resistance : 145 Ω/km
Oil Resistant : Yes
Minimum Operating Temperature : -30°C
Fire Behaviour : Flame Retardant
Shielded/Unshielded : Shielded

Additional Information

Device	Cables
Type	Highly Flexible \| Data

Experience unparalleled flexibility and durability with the CAB2170222 Profibus Cable, designed for demanding applications in power chains and robotics. Its double screening and abrasion-resistant PUR sheath ensure optimal performance in electromagnetically challenging environments, making it ideal for SIEMENS Field-Net systems. Trust in this flame-retardant, oil-resistant cable to deliver reliable data transmission in any conditions.
