CAB800654
SKU: CAB800654
BRAND: Communica South Africa
R 63.65 (inc VAT) R 55.35 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
Collections: Brands
Type: Unknown Type

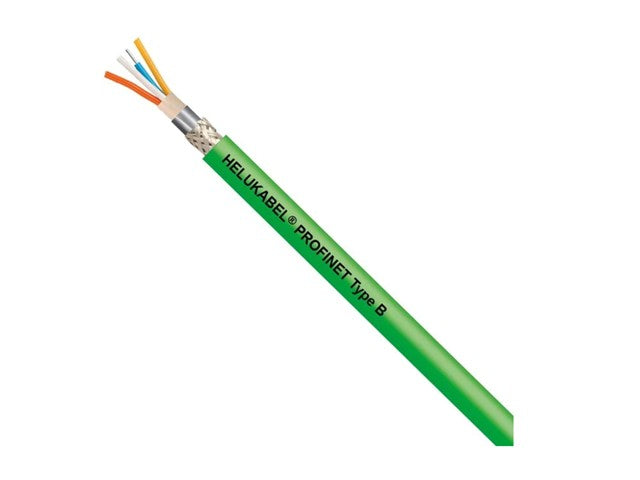

PROFINET Type B; 2x2x22AWG Stranded; PROFINET; CAT5e; Cu; Green PVC Jacket
PROFINET Type B; 2x2x22AWG Stranded
Specifications
Product Code: CAB800654
Manufacturer: HELUKABEL
Cable Name / Type: HELUKAT® PROFINET Type B
Cable Category: Cat 5e
Application: Industrial Ethernet / PROFINET (fixed installation & limited movement)
Transmission Standard: IEEE 802.3
Maximum Data Rate: Up to 100 Mb/s
Number of Pairs: 2 twisted pairs
Conductor Material : Bare copper
Conductor Structure: Stranded
Conductor Cross-Section: AWG 22
Insulation Material: Polyethylene (PE)
Core Identification: Color-coded pairs
Shielding: SF/UTP (overall foil + copper braid)
Outer Sheath Material: PVC
Outer Sheath Color: Green (PROFINET standard)
Outer Diameter (Approx.): ~6.5 mm
Characteristic Impedance: 100 Ω
Nominal Voltage: 125 V
Test Voltage: 1500 V
Operating Temperature (Fixed): –40 °C to +80 °C
Operating Temperature (Flexing): –30 °C to +70 °C
Minimum Bending Radius (Fixed): 5 × cable diameter
Minimum Bending Radius (Moving): 10 × cable diameter
Oil Resistance: Yes
Halogen-Free: No
Flame Retardant: Yes
Standard Compliance: PROFINET Type B
Installation Type: Industrial environments
RoHS Compliance: Yes
Country of Origin: Germany
Downloads
Additional Information
Device
Cable
Type
PROFINET | Type | B | ; 2x2x22AWG | Stranded
Upgrade your industrial Ethernet setup with the HELUKABEL CAB800654 PROFINET Type B cable. Engineered for reliable performance, this CAT5e cable supports data rates up to 100 Mb/s, ensuring seamless connectivity in demanding environments. With its durable green PVC jacket and superior shielding, experience enhanced signal integrity and resistance to interference. Perfect for fixed installations, this cable combines strength and efficiency for all your industrial networking needs.
