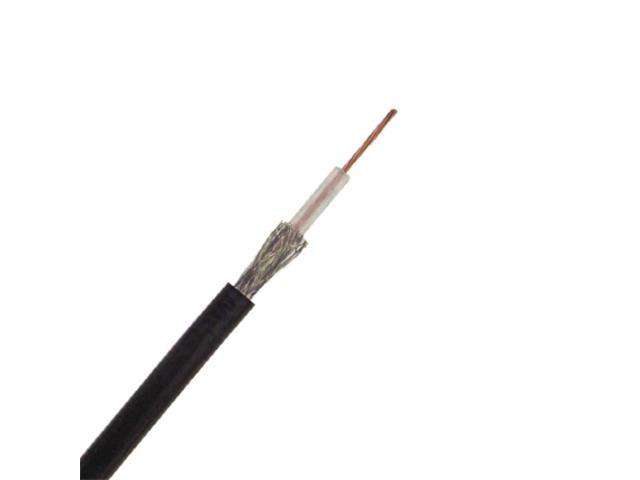

CABRG174U

SKU: CABRG174U

BRAND: Communica


Coaxial Cable • Black Colour • 2.5mm2 • 1x0.48 mm Bare Copper Covered Steel • Dielectric : Solid PE 1.52 • Nominal Impedance : 50 ±2 Ω • PVC OD: 2.6 mm

Overview

Features

Specification

  • Size: 2.5mm2
  • Colour: Black
  • Inner Conductors: 1x0.48 mm Bare Copper Covered Steel
  • Dielectric: Solid PE 1.52
  • Screening: 16/5/0.1 mm Tinned Copper Braided
  • Outer Jacket Size: PVC OD: 2.6 mm
  • Nominal Impedance: 50 ±2 Ω
  • Nominal Vel. of Prop.: 66 ±2 %
  • Nominal Capacitance (pF / m): 104 ±5
  • Nominal Attenuation: (dB/100M) 10MHz: 11dB, 100MHz: 30dB, 200MHz: 40dB, 400MHz: 66dB, 700MHz: 80dB, 900MHz: 93dB
