CABRG58CU

SKU: CABRG58CU

BRAND: Communica

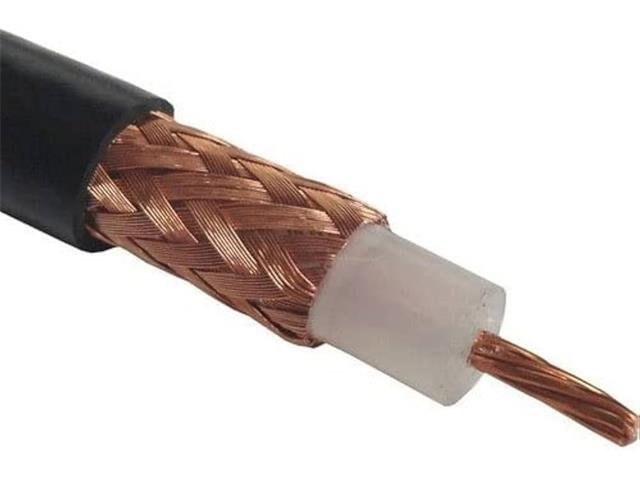

Coaxial Cable • 19x0.2 mm Tinned Copper Strands • Screened : 16/7/0.1 mm Tinned Copper Braided • Dielectric : Form PE 2.95 (Price per meter)

Overview


Features


Specification

  • Size: 5mm2
  • Colour: Black
  • Inner Conductors: 19x0.2 mm Tinned Copper Strands
  • Dielectric: Form PE 2.95
  • Screening: 16/7/0.1 mm Tinned Copper Braided
  • Outer Jacket Size: PVC OD: 5 mm
  • Nominal Impedance: 50 ±2 Ω
  • Nominal Vel. of Prop.: 75 ±2 %
  • Nominal Capacitance (pF / m): 86 ±5
  • Nominal Attenuation: (dB/100M) 50MHz: 11dB, 100MHz: 15.8dB, 200MHz: 20.7dB, 400MHz: 31.5dB, 700MHz: 41.2dB, 900MHz: 47dB
