CABRG59BU

SKU: CABRG59BU

BRAND: Communica

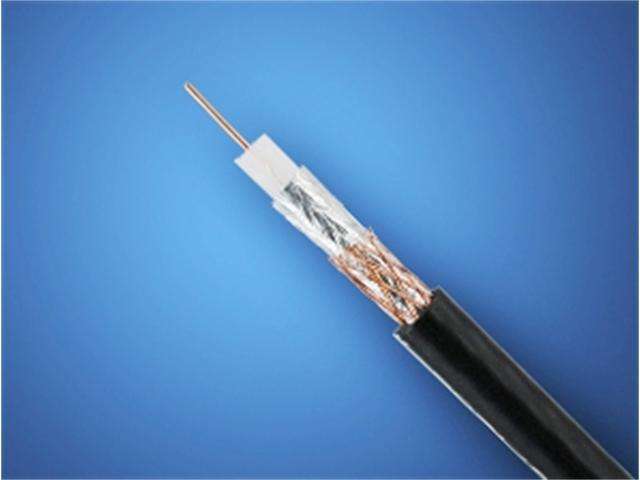

Coaxial Cable • 1x0.8 mm Bare Copper • Screened : 16/3/0.12 mm Bare Copper Braided + Alfoil (Single) • Dielectric : Foam PE 3.7

Overview

Features

Specification

  • Size: 6.15mm2
  • Colour: Black
  • Inner Conductors: 1x0.8 mm Bare Copper
  • Dielectric: Foam PE 3.7
  • Outer Jacket Size: PVC OD: 6 mm
  • Nominal Impedance: 75 ±3 Ω
  • Nominal Vel. of Prop.: 75 ±2 %
  • Nominal Capacitance (pF / m): 57 ±3
  • Nominal Attenuation: (dB/100M) 50 Mhz: 8dB, 100MHz: 11.5dB, 400MHz: 22.5, 800MHz: 32.2dB
