CBI Digital Touch Screen Timer 230Vrms 50Hz, 1PH, Resistive (Geysers, under floor heating, lights):21A, Inductive (Pool pump, air conditioners):10A, Time Retention (Power Outage) 24h, 20°C TO + 55°C, 25000 (Minimum) Operations

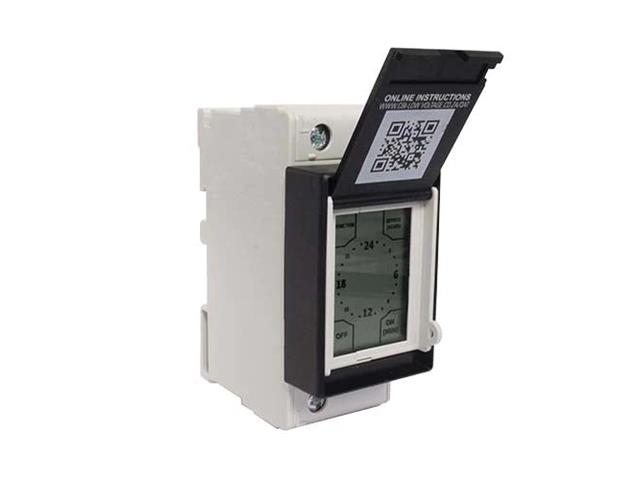

Digital Touch Screen Timer
Overview
The programmable time switch can be used to automatically control pool pumps, lights,
geysers, etc.
Specifications
- Supply Voltage : 230 VRMS 50 Hz, 1Ph
- Maximum Load
- Resistive (Geysers, under floor heating, lights) : 21 A
- Inductive (Pool pump, air conditioners) : 10 A
- Contact Endurance : 20 000 (minimum) Operations
- Degree of Ingress Protection (When installed in distribution panel) : IP40 (not waterproofed)
- Operating Temperature : -20 °C to +55 °C
- Single Segment Period : 15 min.
- Maximum Period for all Segments : 96 x 15 min. Segments
- Clock Accuracy : ± 3 min. per month
- Time Retention (Power Outage) : 24 h
Downloads
Additional Information
Device |
Screen Timer |
Type |
Digital Touch |
