Overview

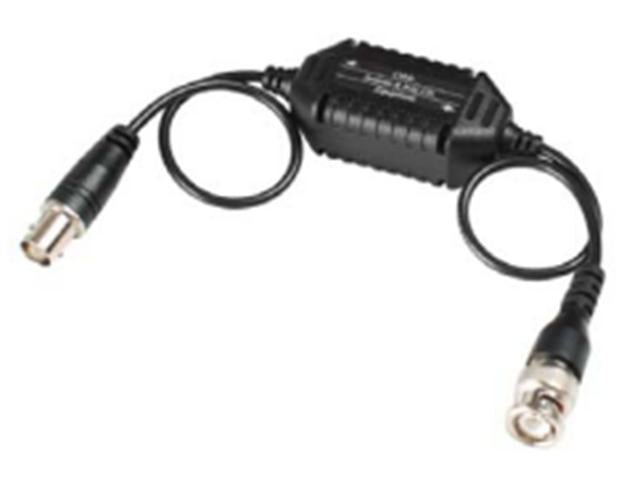

The Video Ground Loop Isolator is passive devices which reduce Ground Loop Interference with CCTV signals and can easily install in a new or added to existing systems. It is useful where a video signal is transmitted via cable between points with different ground potentials, Differences in ground potentials are typically caused by unbalanced power line loads.
Features
- Eliminate image distortion caused by ground Loops
- Eliminates Image Tearing and Cross-talk
- Protect CCTV system from interference of electrical cable
- Built-in 600V Video Isolator eliminating Interference effectively working with DVR
- Built-in Super Protection Unit
Specification
- Insertion loss : 0.5dB
- Frequency response : 20Hz~10MHz (0~3dB)
- Coaxial Input Impedance : 75 Ohms
- Coaxial IOutput Impedance : 75 Ohms
- Isolation Voltage : 600V (Minimum)
- Isolation Resistance : 100M Ohms
- Transient Voltage Suppressors : 12 Vrms
- Dimensions : 73.3x28x21mm with 18cmx2 cable
