CCTV SUR PROT 12V DC - CCTV Products & Accessories -

CCTV SUR PROT 12V DC

SKU: CCTV SUR PROT 12V DC

BRAND: Communica


Sold Out

Collections: Security, Access Control & Surveillance

Type: CCTV Products & Accessories

Category: CCTV Surge Protector

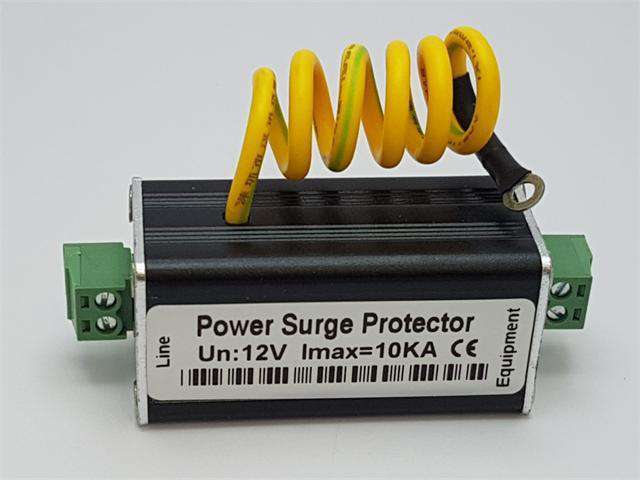

DC12V CCTV Surge Protector for Power

Overview

  • Used for 12VDC power
  • Designed according to the standard of IEC surge protector.
  • The joint form is standard screw grip, providing protect of 1~2 groups of circuits.
  • There are various choices of quota voltage, and the installation and maintenance is easy and convenient.
  • 3-levels in tandern type, the maximum discharging current achieves 10kA. Reacting within Nanosecond level, it can fully protect those equipments of the latest semiconductors

Features

  • Continuous operating voltage Un : 5V
  • Nominal discharging current In (8/20us) : 5kA
  • Maximum discharging current Imax (8/20us) : 10kA
  • Limit voltage Up : 15V
  • Data transmission rate Vs : 10Mbps
  • Insert loss Ae : 0.2dB
  • Response time Ta : 1nS
  • Joint form : Grip
  • Protection form Line to line, line to earth
  • Working conditions : Temperature -25~+65°C Humidity 95%(25~30°C)
  • Expiration pattern : The communication lines are short-circuit or cut off to earth
  • Test standard : IEC61643-21:2000

Specification
