CCTV SUR PROT 3 IN 1 W/PROOF - CCTV Products & Accessories -

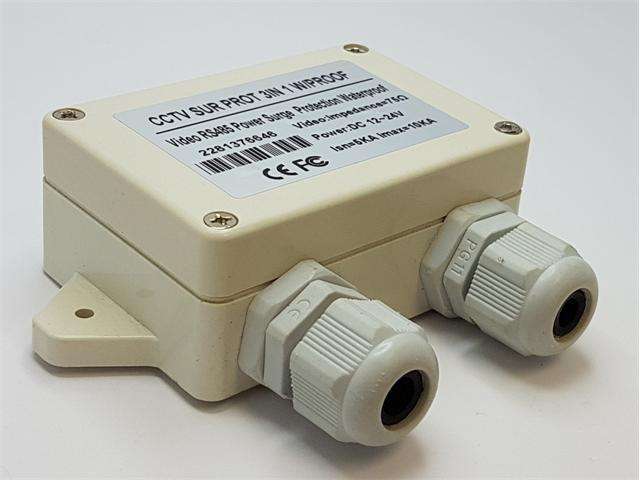

CCTV SUR PROT 3 IN 1 W/PROOF

SKU: CCTV SUR PROT 3 IN 1 W/PROOF

BRAND: Communica


In Stock
R 420.00 (inc VAT)
R 365.22 (ex VAT)

Collections: Security, Access Control & Surveillance

Type: CCTV Products & Accessories

Category: Surge Protection

3 way Waterproof CCTV Surge Protection for Power DC 12V , Data RS 485 and Video 75ohm Impedance

Overview

Protect security CCTV system with power, control signal and video from high voltage surge. Make sure system and equipment’s safety when surge come from thunderbolt or static.

Features

  • Large electric current support
  • Multiple level protection
  • Quick response
  • Minor wastage after connecting

Specification

  • Function Protection : Video, Data, Power
  • Insertion loss : 0.1dB
  • Response time : <10ns
  • Working Temperature Range : -40~+85°C
  • Max. Discharge Current : 10KA
  • Overall Dimension : 80x55x35mm
  • Video Surge Protection
    • Discharge Voltage : 8V
    • Max Continuous Voltage : 15V
    • Maximum Transmission Rate : 20MHz
  • Power Surge Protection
    • Continuous Working Voltage : 18V
    • Max Continuous Voltage : 27V
  • Data Surge Protection
    • Discharge Voltage : 12V
    • Max Continuous Voltage : 30V
    • Maximum Transmission Speed : 20MHz
