Overview

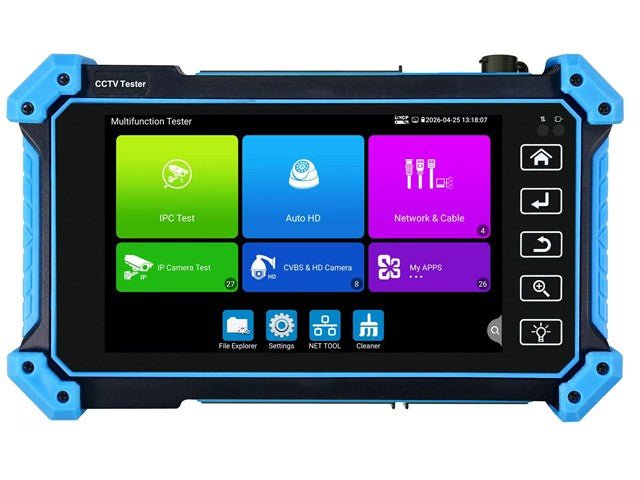

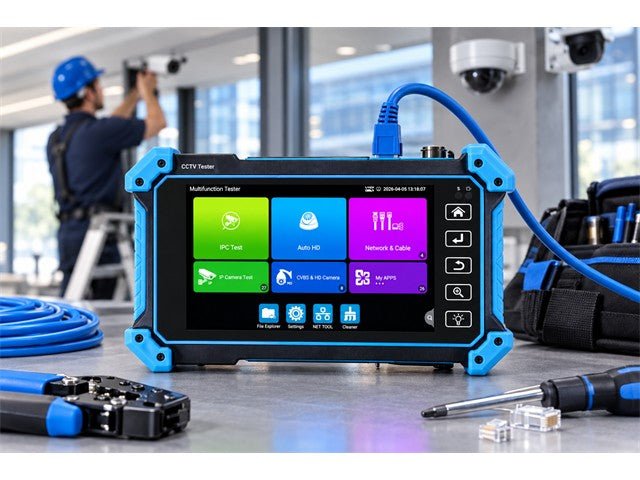

The 5.4 inch IPS touch screen IP camera monitor is designed for maintenance and installation of IP cameras, analog cameras, TVI, CVI, AHD, SDI/EX-SDI cameras, as well as testing 4K H.264 /8K H.265 camera by mainstream, The 1920x1152 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. The combination of touch screen and key buttons make the IP camera tester very user- friendly.
Feature(s)
-
8K IP Camera Tester - Network camera tester support max 8K 32MP 12MP 4K IP Camera test. Powerful network tools to help you detect and set various network parameters. Support PoE IEEE802.3af/at 48V, maximum power 25.5W, UTP cable test, POE power output RJ45 TDR cable test.
-
Coaxial CCTV camera test - Support max 8MP(3840x2160P) TVI / AHD / CVI camera test, support UTC PTZ control and call OSD menu. Built-in "Auto HD" APP can automatically recognize the camera type when viewing HD AHD / TVI / CVI cameras. And CCTV tester also support CVBS analog camera test.
-
Professional testing tools - Built-in special tools for Hik and DH, support batches of fast setting of Hik and DH cameras. At the same time, it has built-in dedicated testing tools for OVIF and other brands of cameras, which can be compatible with most existing cameras. Use it to make your installation simple and efficient.
-
Multi-function tester : CCTV tester has a 5.4 inch 1920x1080P touch screen that can display its genuine resolution of the IP camera images. Built-in media player. Built in W-i-F-i, create W-I-F-I hotspot. VGA & HD Input, LED lamp, calculators, support snapshot, video record & playback; The camera tester uses Android system, so you can also install the APP you need.
