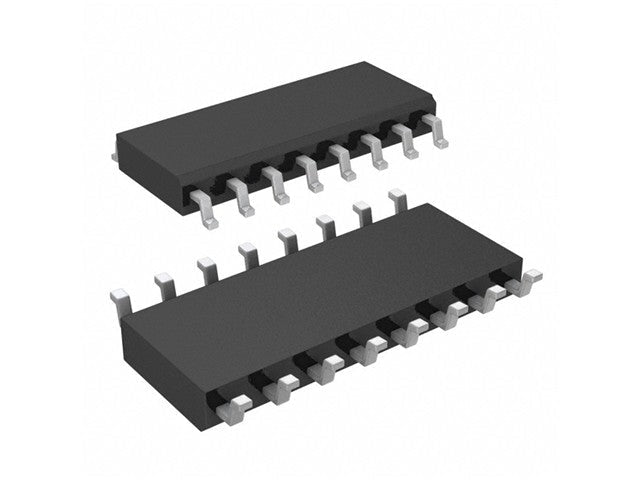

CD4040BP

Name: CD4040BP - Communica [Part No: CD4040BP]
Brand: Communica
SKU: CD4040BP
Price: 7.75 ZAR
Availability: InStock

SKU: CD4040BP

BRAND: Communica

R 8.91_{(inc VAT)}
R 7.75_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Ripple-Carry Binary Counter/Divider CRY16PD(25)

Specifications

Function: Counter
Number of Bits: 12
Technology Family: CD4000
Supply Voltage (Min): 3 V
Supply Voltage (Max): 18 V
Input Type: Standard CMOS
Output Type: Push-Pull
Features: Balanced outputs; Positive input clamp diode; Standard speed (tpd > 50 ns)
Operating Temperature Range: -55°C to 125°C
Rating: Catalog

Medium-speed operation
Fully static operation
Buffered inputs and outputs
100% tested for quiescent current at 20 V
Standardized, symmetrical output characteristics
Fully static operation
Common reset
5-V, 10-V, and 15-V parametric ratings
Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
Noise margin (over full package-temperature range):
     1 V at V_DD = 5 V
     2 V at V_DD = 10 V
     2.5 V at V_DD = 15 V
Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
Applications:
- Control counters
- Timers
- Frequency dividers
- Time-delay circuits

Device

Counter/Divider
