Application

• Timed bypass of zone
• Pulse reducer
• Any timing application

• Power supply : 12VDC
• Current drain : 5,7mA standby
• Positive or negative trigger input
• Positive reset input
• Adjustable time from 2 sec to 3 hours
• Normally open and closed relay contacts : 5A @ 12VDC
• Physical size : 54mm x 39mm

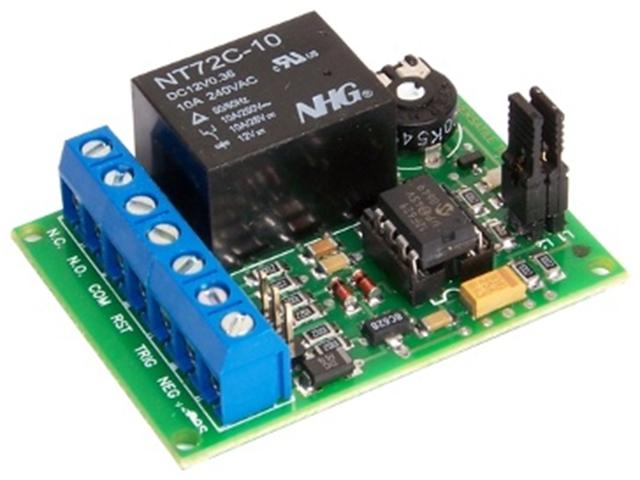

1. Datasheet - CEM 1014 TIMER MODULE
