Technical Data

D6 SMART

Input voltage

110V - 240V AC 50/60Hz¹

Current consumption (Mains)

430mA

DX1 Battery charger current output

1.3A@ 27.6V (+/-5%), 38W

Maximum number of operations per day

150

Duty cycle - Mains present^2,3

50%

Motor voltage⁵

24V DC

Motor power supply

Battery-driven (Standard Capacity - 2x12V)

Current consumption (motor at rated load)

13A

      I/O 1-4

100mA (12/24V)

      I/O 5 and 6

3A (12/24V) 10sec Pulse

Motor push force - starting

30kgf

Motor push force - rated

17kgf

Gate mass - maximum

600kg

Gate length - maximum

100m

Gate speed (varies with load)⁴

Up to 36m/min @ 17kgf

Manual Override

Lockable with key release

      Half day^5,6

209 (Power Saving) / 102 (Normal)

      Full day^5,6

183 (Power Saving) / 79 (Normal)

Collision Sensing

Electronic

Operating temperature range

-15°C to +50°C

Onboard receiver type

Code-hopping multichannel receiver with selective add and delete

Receiver code storage capacity

1500 Remotes⁷

Receiver frequency

433.92MHz

Degree of protection

IP55

Mass of unit packed (with standard kit, but excl. rack and battery)

9.1kg

Packaging dimensions (with standard kit, but excl. rack and battery)

325mm wide x 244mm deep x 445mm high

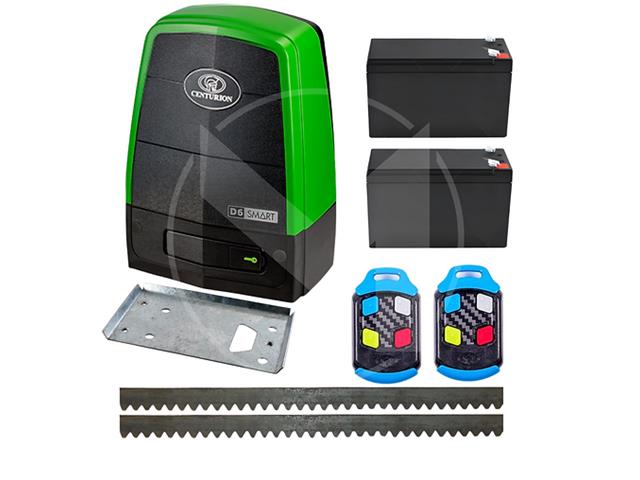

• 1 x D6SMARTB00 + 2xTX4 Remotes
• 2 x Mild Steel Racks : CP20RSUB001
• 2 x 12V7AH Batteries : CP4C2
• 1 x Base Plate: 1401M043V10B
