CEN GSPU4GCMV3

Name: CEN GSPU4GCMV3 - Communica [Part No: CEN GSPU4GCMV3]
Brand: Centurion
SKU: CEN GSPU4GCMV3
Price: 2900 ZAR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: CEN GSPU4GCMV3

BRAND: Centurion

In Stock
R 3,335.00_{(inc VAT)}
R 2,900.00_{(ex VAT)}

Collections: Security, Access Control & Surveillance

Type: Access Automation

Category: Intercom and Accessories

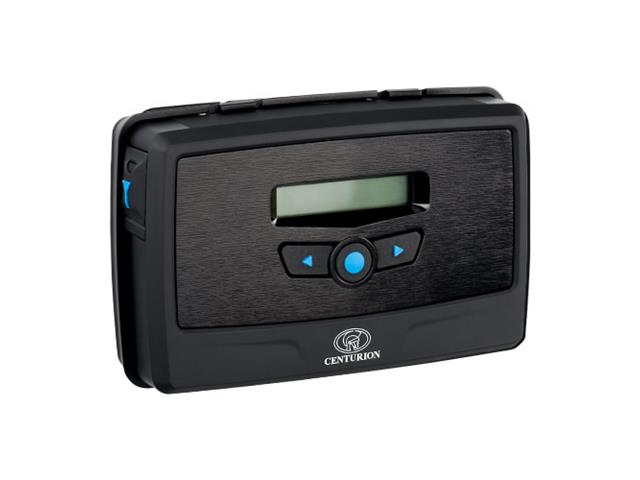

Centurion G-Speak Ultra 4G GSM Controller Module V3 Intercom, Supply Voltage:11-24VDC, Memory Capacity:1500 Access Numbers, 5000 Event Logs, 20 Access Profiles, 4XConfigurable Input/output Channels, IP40

G-Speak Ultra 4G GSM Controller

Specifications

TECHNICAL SPECIFICATIONS	G-SPEAK ULTRA
	Supply Voltage Range	11-24V DC
	Maximum Current Draw	300mA @ 12V DC
	Input/output Current Rating	50mA (Open Collector)
	Input Sense Voltage Range	0-24V DC (0-1.6V Low-input State, 5V-24V High-input State)
	SIM Card	Micro-format, Activated MTN® SIM Card Supplied1, 2
	Number of Configurable Input/ output Channels	4
	Call Buttons on Calling Module	2
	Call confirmation at Calling Module	Yes
	Speech volume	Adjustable at Calling Module using Call Buttons
	Calling Module illumination	Call Buttons and labels with back-lit white LEDs
	Memory Capacity	• 1500 Access numbers • 5000 Event logs • 20 Access Profiles • 1 Custom Welcoming SMS Message for New Access Numbers • 20 Custom Output Activation SMS Messages (From User to Device) • 30 Custom Input Notifi cation SMS/Email Messages (From Device to User) • 100 Visitor Time-barring Windows (Windows are the periods between two dates) • 30 Generic Time-barring Windows (Windows are weekly recurring) • 10 Output Activation Schedules (Schedules are weekly recurring) • 3 Daylight Saving Periods • 4 Input to Output Mapping Configurations
	Model Options	GSM 2G: 850/900/1800/1900MHz (EDGE) GSM 3G: 900/2100MHz (EDGE) 900/2100MHz (UMTS) GSM 3G PENTA: 800/850/900/1900/2100MHz (UMTS) GSM 4G/LTE-CAT1: 900/2100MHz
	Degree of protection (G-Speak Ultra)	IP40
	Degree of protection (Calling Module)	IP52

Downloads

Datasheet - CEN GSPU4GCMV3

Additional Information

Device	Controller
Type	G-Speak \| Ultra \| 4G \| GSM
