CEN SD04 SMART (T10)

Name: CEN SD04 SMART (T10) - Communica [Part No: CEN SD04 SMART (T10)]
Brand: Centurion
SKU: CEN SD04 SMART (T10)
Price: 2082.61 ZAR
Availability: OutOfStock
Rating: 5.00 (2 reviews)

SKU: CEN SD04 SMART (T10)

BRAND: Centurion

Sold Out
R 2,395.00_{(inc VAT)}
R 2,082.61_{(ex VAT)}

Collections: Security, Access Control & Surveillance

Type: Access Automation

Category: Garage Door Motors

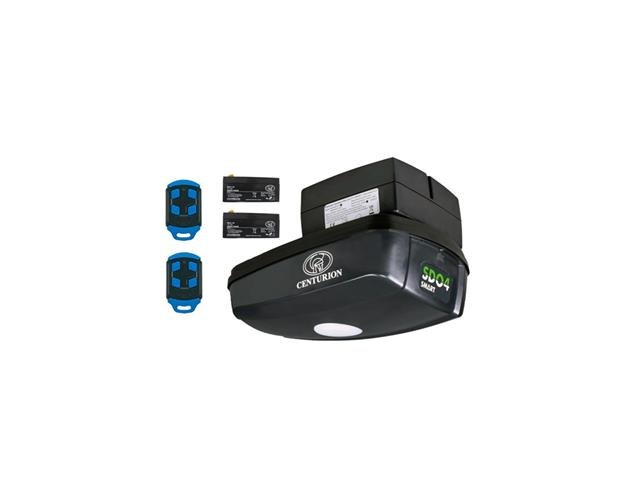

Centurion SD04 Smart (T10) Garage Door Drive Head Unit Relay Type, Includes: 2X12V 3.4A Batteries, 2X4 Button Remotes

SD04 Smart (T10) Garage Door

Specifications

Input voltage : 230V AC @ 50/60Hz1
Motor voltage : 24V DC
Motor power - rated : 80W DC
Max door width : 6500mm
Max door area : 12 square metres
Maximum push/pull force : 40kgf
Max holding capacity : 1000N
Operations in standby mode : Up to 90 depending on the door size / weight / height / duration of
power failure / condition of batteries
Maximum operator travel : speed2 9m/min
Door travel adjustment : Physical Endstops (Automatic limit set)
Safety obstruction force system : Built-in menu
Light : LED 2W
Autoclose3 : Menu Selectable
Infrared safety beams : Menu Selectable (Optional, but recommended)
Radio receiver : Code-hopping 433MHz
IP Rating4 : IPX0 (For interior use only)
Receiver code storage capacity : 20x 4-Button NOVA transmitters

Downloads

Additional Information

Device	SD04 Smart (T10)
Type	Garage Door

Upgrade your garage with the CEN SD04 SMART (T10) drive unit. Featuring powerful 24V DC operation and remote access, it ensures convenience and security for doors up to 6.5 meters wide. Enjoy reliable performance with long-lasting battery support and customizable safety features, making your daily life easier and safer.
