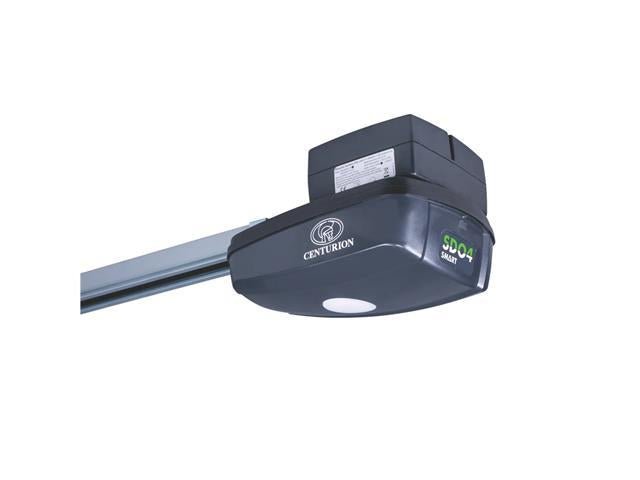

CEN SD04 SMART (T10) TIP-UP

SKU: CEN SD04 SMART (T10) TIP-UP

BRAND: Centurion


Centurion SD04 Smart (T10) Tip-Up Garage Door Motor Kit, Includes : (2 X 4 Button Remotes, 2X12V3, 4A Batteries, 1 X Single Piece Track 2m/Belt)

Tip-Up Garage Door Motor Kit

Specifications

  • Technical Data : T10
  • Input voltage : 230V AC +/-10% @ 50/60Hz1
  • Motor voltage : 24V DC
  • Motor power supply - rated : 80W DC
  • Motor supply : Battery supply 2 x 3.4Ah 12V DC
  • Maximum door width : 6.5 metres
  • Maximum door area : 12 Square meters
  • Maximum push/pull force : 40kgf
  • Maximum lifting capacity : 1000N
  • Operations in standby mode : Up to 90 dependent on door size, weight, height and duration of power failure / condition of batteries
  • Maximum operator travel speed : 9m/min
  • Door travel adjustment : Physical end-stops (Automatic limit set)
  • Safety obstruction force system : Built-in menu
  • Light : LED 2W
  • Autoclose : Menu Selectable
  • Infrared safety beams : Menu Selctable (Optional but recommended)
  • Onboard receiver type : Code-hopping single channel
  • Receiver code storage capacity : 20x 4-Button Transmitters
  • Receiver frequency : 433.92Mhz

Downloads

Additional Information

Device Door Motor Kit
Type Tip-Up | Garage
