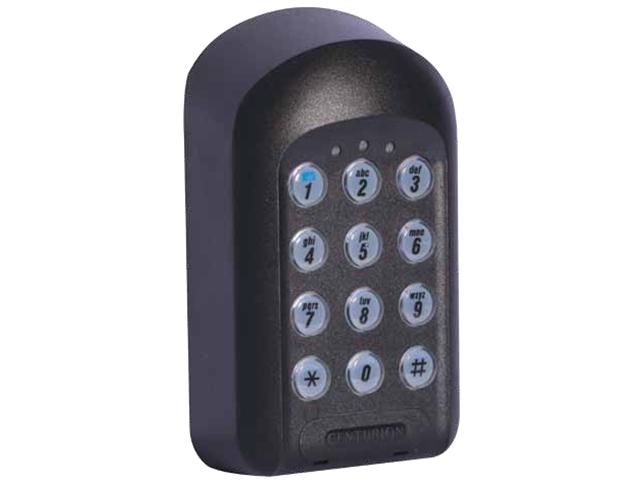

CEN SK/1BLK KEYPAD

SKU: CEN SK/1BLK KEYPAD

BRAND: Centurion


12V Standalone Keypad with 1000 User Codes Memory and Backup Memory Module

Standalone Keypad

Features

  • Smartguard Keypad for hard-wired installations – compatible with almost any access control device
  • 1000 unique codes using one to ten digits – for greater securityand versatility in a multi-user application
  • Three channel output – activate up to three devices
  • Selectively add and delete user codes – convenient and secure management of the system
  • Backup Memory Module – guarantees data security
  • Limited Uses Counter – grant access to armed response, garden services, etc. - codes are automatically rendered invalidafter pre-set number of uses

Specifications

  • Input voltage : 12V - 24V AC/DC
  • Current : 32mA (standby) – 180mA (max)
  • Operating temperature : -20°C – 60°C
  • Operating range : NA
  • Operating frequency : NA
  • Outputs : 3 (1 Relay output, 2 open collector outputs)
  • Output pulse time range : 1 – 255 sec (adjustable) or latched
  • Memory 1000 user codes
  • Dimensions (mm) : 80x28x132
  • Housing Material : Polycarbonate
  • Degree of protection : IP55

Additional Information

Device Keypad
Type Standalone
