CGP-M20X1,5-08-BK - Cable Glands, Strain Relief & Grommets -

CGP-M20X1,5-08-BK - Cable Glands, Strain Relief & Grommets -

CGP-M20X1,5-08-BK

SKU: CGP-M20X1,5-08-BK

BRAND: Hummel

In Stock
R 30.53_{(inc VAT)}
R 26.55_{(ex VAT)}

Collections: Wire & Cable

Type: Cable Glands, Strain Relief & Grommets

Category: Cable Glands

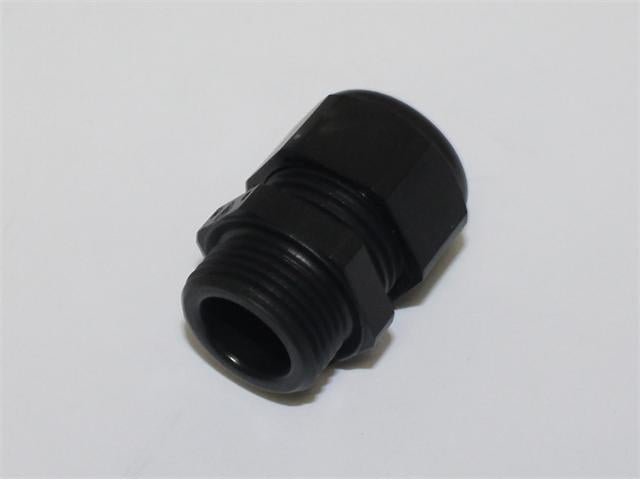

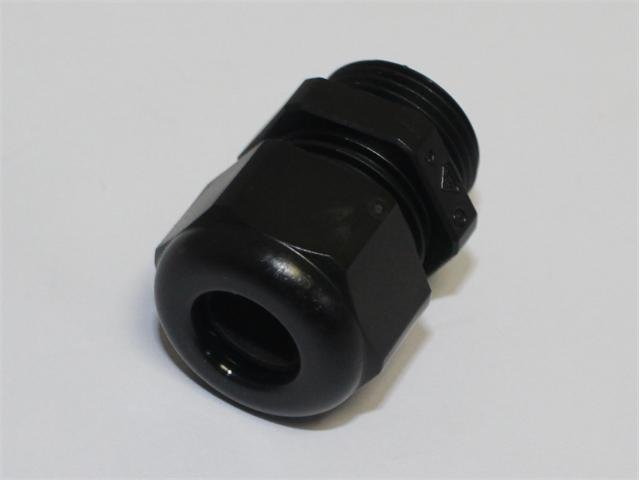

Cable Gland Polyamide M 20 x1,5 for Cable 6-12mm Black

M20 x1,5 Polyamide Cable Gland

Specifications

Cable Diameter : 6 – 12 mm
colour : Black
Height : 27 mm
Male thread : M 20 x 1,5
Material : Polyamide V0 according to UL 94
Operating-Temperature : -40 – 100 °C
Protection : IP 68 – 10 bar / IP 69K with optional O-Ring
Seal : Buna-N
Thread Length : 9 mm
Wrench Size : 24 mm

Additional Information

Device	Cable Gland
Type	M20 x1,5 \| Polyamide
Highlights	for Cable 6-12mm
Keywords	1209200150
