CGP-M32X1,5-14-GY

SKU: CGP-M32X1,5-14-GY

BRAND: Hummel

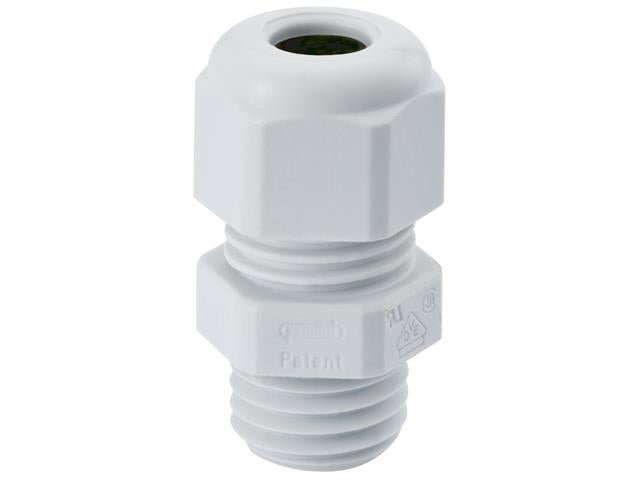

Cable Gland Polyamide M32X1,5 for Cable 18-25mm Grey

Cable Gland Polyamide M32X1,5

Specifications

  • Material : Polyamide V0 according to UL94
  • Seal : NBR
  • Protection class
    • IP 54,
    • IP 68 with additional O-ring,
    • IP 69 K
  • Type Rating by
    • 12,
    • 4,
    • 4X,
    • 6,
    • UL 50E
  • Temperature range : -40°C to +100°C
  • Colour : grey
  • Variant : Metric

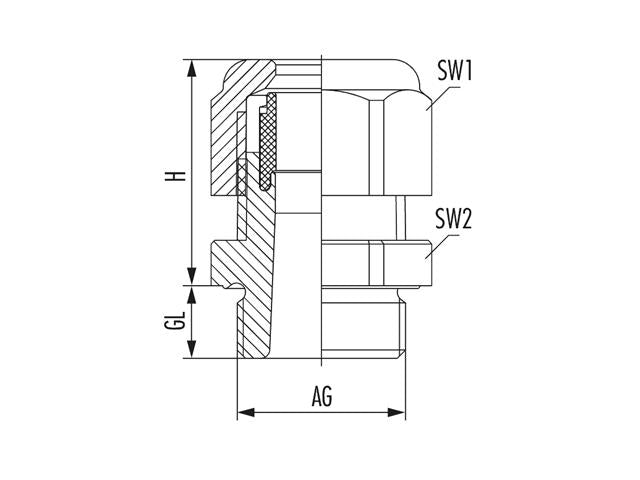

  • External thread (AG) : M32 x 1,5
  • Cable diameter : 18 – 25 mm
  • Thread length (GL) : 11 mm
  • Height (H) : 39 mm
  • Wrench size (SW1/SW2) : 42/42 mm
  • Tightening torque : 6.5 Nm
  • Product group : Standard

Additional Information

Device Cable Gland
Type Polyamide | M32X1,5
Keywords 1209320050
