CHANGEOVER SWITCH SFT440

SKU: CHANGEOVER SWITCH SFT440

BRAND: Hager

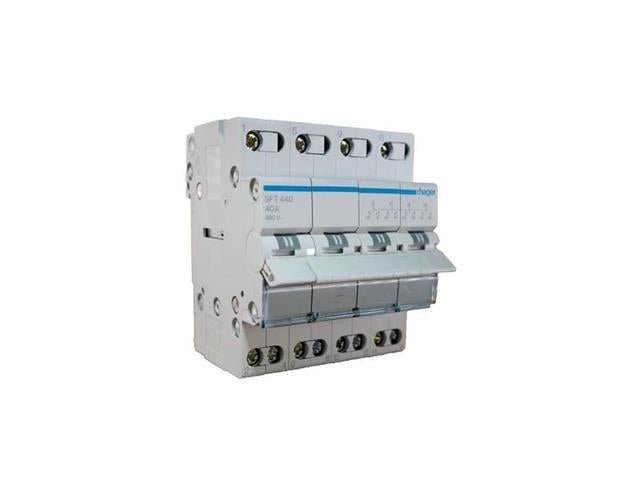

Hager DIN Rail Changeover Switch 40A 4Poles ON-OFF-ON 230~400VAC IP20

Overview

Features

Specification

Technical information Values

  • Connection cross-sect. flexible cable : 1,5 / 10mm2
  • Connection cross-sect. rigid cable : 1,5 / 16mm2
  • Connection type (text) : With screw
  • Contact type : 4 changeover switches
  • Depth of installed product : 71 mm
  • Device family : SFT
  • Frequency : 50/60 Hz
  • Hager installation time : 90 s
  • Hager wiring time : 435 s
  • Height of installed product : 83 mm
  • In / Ue contact : 40 A - 230/400 V AC
  • Installation time : 90 s
  • Net weight of the product : 254 g
  • Number of changeover switch contacts : 4
  • Number of half-modules for the labelling field : 8 1⁄2 Mod
  • Number of mechanical operations : 200000
  • Number of modules : 4
  • Number of NC contacts : 0
  • Number of NO contacts : 0
  • Number of poles : 4 P
  • Number of products in the packaging : 1
  • Product group number for calculating the heating processes : 1
  • Protection index IP : IP20
  • Quantity of half modules of 17,7mm : 8 1⁄2 Mod
  • Rated current : 40 A
  • Short-circuit current with gI-gG fuses : 600 A
  • Standard text : IEC 60947-3
  • Tightening torque : 1,8Nm
  • Total power loss under IN : 8.4 W
  • Type of order : Changeover switch
  • Version : 4pole
  • Width of installed product : 70 mm
  • Wiring time : 435 s
