CLX-QA26/20-500

Name: CLX-QA26/20-500 - Communica [Part No: CLX-QA26/20-500]
Brand: Dadisick
SKU: CLX-QA26/20-500
Price: 11505 ZAR
Availability: OutOfStock

SKU: CLX-QA26/20-500

BRAND: Dadisick

Sold Out
R 13,230.75_{(inc VAT)}
R 11,505.00_{(ex VAT)}

Collections: Sensors

Type: Motion Sensors

Category: Safety Light Curtains

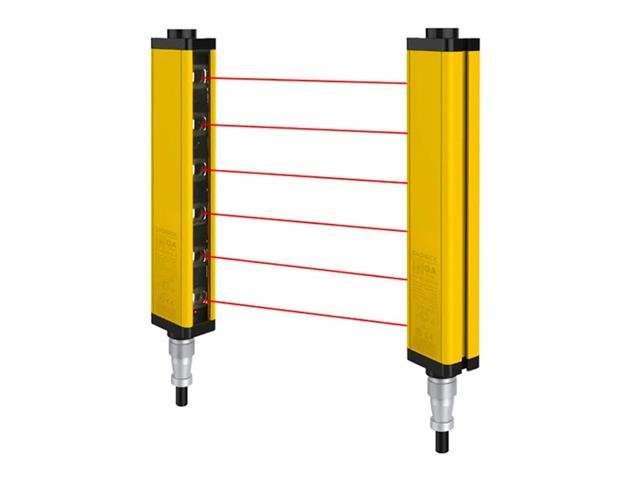

Light Curtain 26 Beam 500mm Sensing Length 20mm Object Spacing Dual O/P-PNP N/O & N/C

Light Curtain 26 Beam

Feature

Perfect self-examination function
Strong anti-interference ability
Easy to install and adjustable
Simple wiring and beautiful appearance
Surface mount technology for superior shock resistance.
IEC61496-1/2 standard of Type 4 and has passed CE certification, Type 2, Type 4.
Ultra-small design. Width and thickness of only 35 * 50.8mm
Various models with a detection range of 50 to 2480 mm are available.
Performance of the light projection element of the system is higher.
The default detection distance is up to 3 meters and the maximum distance is 35 meters.

Specifications

3M Sensing Distance
Supplied with OCA-05 Mounting Bracket & Complete with Cordsets
Unit total length : 552mm
Operation Voltage: DC24V

Downloads

Datasheet - Model -CLX-QA

Additional Information

Device	Beam
Type	Light Curtain \| 26
