CM12BF5S-CW/9

Name: CM12BF5S-CW/9 - Communica [Part No: CM12BF5S-CW/9]
Brand: Wain
SKU: CM12BF5S-CW/9
Price: 163.88 ZAR
Availability: InStock

SKU: CM12BF5S-CW/9

BRAND: Wain

R 188.46_{(inc VAT)}
R 163.88_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

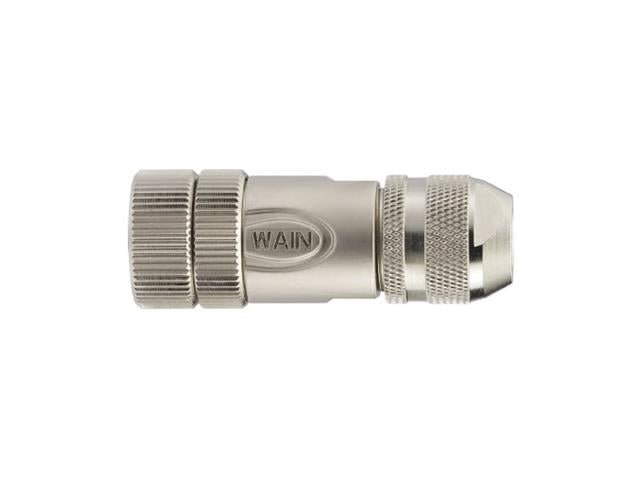

Circular Connector M12 B COD Cable Female Straight. 5 Pole Screw. Clamp Terminal PG9 Cable Entry IP67

M12 B COD Cable Circular Connector

Specifications

Technical characteristics
Number of contacts	5-pole
Rated current (40℃)	4A
Rated voltage	125V
Rated impulse voltage	1500V
Pollution degree	3
Overvoltage categorie	II
Contact resistance	≤10mΩ
Connector locking system	screw M12x1
Termination	screw
Wire gauge	max.0.75mm²(max.AWG18)
Cable outlet	6-8mm
Degree of protection	IP67
Mechanical operation	＞100
Limiting temperature	-40℃...+85℃
Material group	II
Material of contact	copper alloy
Contact plating	Au
Insulating material	PA
Material of housing	zinc diecasting nickel plated, brass nickel plated

Downloads

Datasheet - CM12BF5S-CW/9

Additional Information

Device	Connector
Type	M12 \| B COD \| Cable \| Circular

Enhance your connectivity with the CM12BF5S-CW/9 M12 Circular Connector. Designed for durability and reliability, this 5-pole female connector offers IP67 protection, ensuring optimal performance in challenging environments. With its robust screw locking system and high-quality materials, it’s perfect for demanding applications. Upgrade your setup today with this reliable connector for seamless connections!
