CM12BF5S-CW/9-SH

Name: CM12BF5S-CW/9-SH - Communica [Part No: CM12BF5S-CW/9-SH]
Brand: Wain
SKU: CM12BF5S-CW/9-SH
Price: 305.90 ZAR
Availability: InStock

SKU: CM12BF5S-CW/9-SH

BRAND: Wain

In Stock
R 351.79_{(inc VAT)}
R 305.90_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

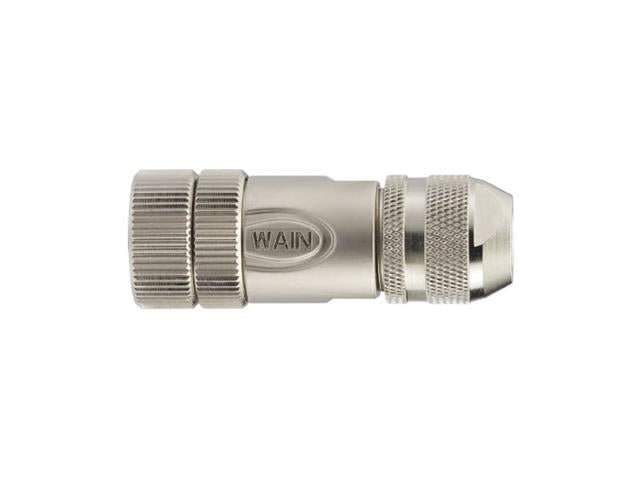

Circular Connector M12 B COD Cable Female Straight. 5 Pole Screw. Clamp Terminal PG9 CABLe ENTRY - Shielded with Shield. Ring IP67

M12 B COD Cable Circular Connector

Specifications

Number of contacts	5-pole
Rated current (40℃)	4A
Rated voltage	125V
Rated impulse voltage	1500V
Pollution degree	3
Overvoltage categorie	II
Contact resistance	≤10mΩ
Connector locking system	screw M12x1
Termination	screw
Wire gauge	max.0.75mm²(max.AWG18)
Cable outlet	6-8mm
Degree of protection	IP67
Mechanical operation	＞100
Limiting temperature	-40℃...+85℃
Material group	II
Material of contact	copper alloy
Contact plating	Au
Insulating material	PA
Material of housing	zinc diecasting nickel plated, brass nickel plated

Downloads

Datasheet - CM12BF5S-CW/9-SH

Additional Information

Device	Connector
Type	M12 \| B COD \| Cable \| Circular
