CM12BM5A-CW/9

Name: CM12BM5A-CW/9 - Communica [Part No: CM12BM5A-CW/9]
Brand: Wain
SKU: CM12BM5A-CW/9
Price: 148.58 ZAR
Availability: InStock

SKU: CM12BM5A-CW/9

BRAND: Wain

R 170.87_{(inc VAT)}
R 148.58_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

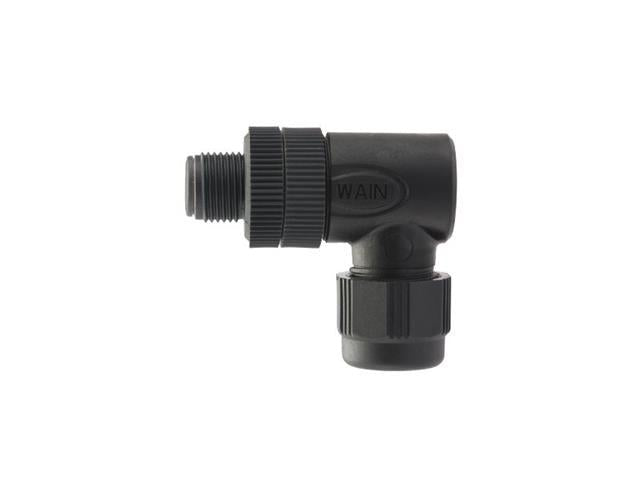

Circular Connector M12 B COD Cable Male Angled 5 Pole Screw. Clamp Terminal PG9 Cable Entry IP67

M12 B COD Cable Male Circular Connector

Specifications

Technical characteristics
Number of contacts	5-pole
Rated current (40℃)	4A
Rated voltage	125V
Rated impulse voltage	1500V
Pollution degree	3
Overvoltage category	II
Contact resistance	≤10mΩ
Connector locking system	M12x1
Termination	screw
Wire gauge	max.0.75mm ² (max.AWG18)
Cable outlet	6-8mm
Degree of protection	IP67
Mechanical operation	＞100
Limiting temperature	-40℃...+85℃
Material group	II
Material of contact	copper alloy
Contact plating	Ouch
Insulating material	P.A.
Housing material	PA/PBT

Downloads

Datasheet - CM12BM5A-CW/9

Additional Information

Device	Connector
Type	M12 \| B COD \| Cable \| Male \| Circular

Upgrade your connections with the CM12BM5A-CW/9 M12 B COD Circular Connector. Designed for durability, this 5-pole male connector features IP67 protection, ensuring reliability in harsh environments. With a secure screw termination and a wide temperature range, it's perfect for industrial applications, providing seamless connectivity and peace of mind.
