CM12BM5S-CW/9-SH

Name: CM12BM5S-CW/9-SH - Communica [Part No: CM12BM5S-CW/9-SH]
Brand: Wain
SKU: CM12BM5S-CW/9-SH
Price: 298.25 ZAR
Availability: InStock

SKU: CM12BM5S-CW/9-SH

BRAND: Wain

R 342.99_{(inc VAT)}
R 298.25_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

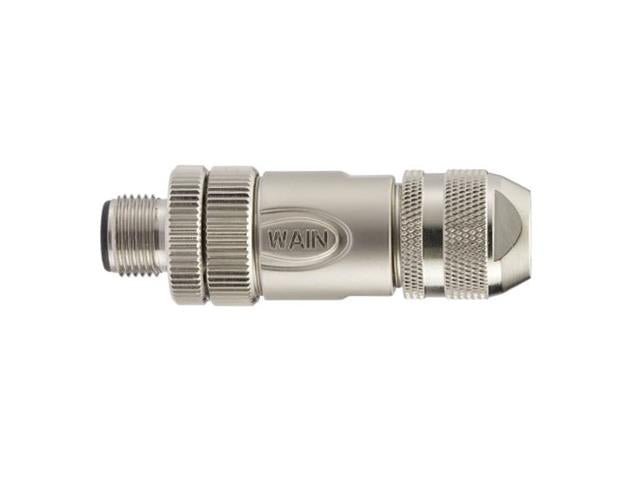

Circular Connector M12 B COD Cable Male Straight. 5 Pole Screw. Clamp Terminal PG9 Cable Entry - Shielded with Shield. Ring IP67

M12 B COD Cable Circular Connector

Specifications

Technical characteristics
Number of contacts	5-pole
Rated current (40℃)	4A
Rated voltage	125V
Rated impulse voltage	1500V
Pollution degree	3
Overvoltage categorie	II
Contact resistance	≤10mΩ
Connector locking system	screw M12x1
Termination	screw
Wire gauge	max.0.75mm²(max.AWG18)
Cable outlet	6-8mm
Degree of protection	IP67
Mechanical operation	＞100
Limiting temperature	-40℃...+85℃
Material group	II
Material of contact	copper alloy
Contact plating	Au
Insulating material	PA
Material of housing	zinc diecasting nickel plated, brass nickel plated

Downloads

Datasheet - CM12BM5S-CW/9-SH

Additional Information

Device	Connector
Type	M12 \| B COD \| Cable \| Circular

Discover the robust CM12BM5S-CW/9-SH Circular Connector, designed for reliable performance in demanding environments. With a 5-pole screw locking system and IP67 protection, this shielded connector ensures maximum durability and safety for your electrical connections. Perfect for industrial applications, it supports a rated current of 4A and operates efficiently from -40℃ to +85℃. Upgrade your connectivity solutions with this high-quality, easy-to-install M12 connector today!
