CM12DM4S-CW/9-SH

Name: CM12DM4S-CW/9-SH - Communica [Part No: CM12DM4S-CW/9-SH]
Brand: Wain
SKU: CM12DM4S-CW/9-SH
Price: 282.41 ZAR
Availability: InStock

SKU: CM12DM4S-CW/9-SH

BRAND: Wain

R 324.77_{(inc VAT)}
R 282.41_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

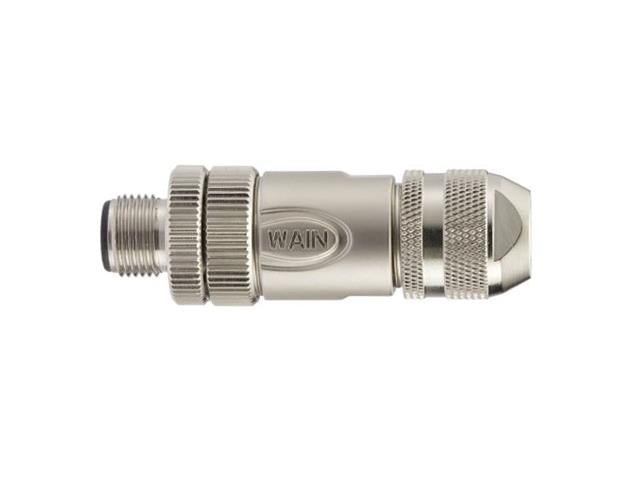

Circular Connector M12 D COD Cable Male Straight. 4 Pole Screw. Clamp Terminal PG9 Cable Entry - Shielded with Shield. RING IP67

M12 D COD Cable Circular Connector

Specifications

Technical characteristics
Number of contacts	4
Rated current (40℃)	4A
Rated voltage	250V
Rated impulse voltage	2500V
Pollution degree	3
Overvoltage categorie	II
Contact resistance	≤10mΩ
Connector locking system	screw M12x1
Termination	screw
Wire gauge	max.0.75mm²(max.AWG18)
Cable outlet	6-8mm
Degree of protection	IP67
Mechanical operation	＞100
Limiting temperature	-40℃...+85℃
Material group	II
Material of contact	copper alloy
Contact plating	Au
Insulating material	PA
Material of housing	zinc diecasting nickel plated

Downloads

Datasheet - CM12DM4S-CW/9-SH

Additional Information

Device	Connector
Type	M12 \| D COD \| Cable \| Circular

Upgrade your connectivity with the CM12DM4S-CW/9-SH Circular Connector, designed for reliable performance in demanding environments. Featuring 4 poles and an IP67 rating, this shielded connector ensures robust protection against dust and moisture. Its durable design supports a wide temperature range, making it ideal for industrial applications. Experience seamless connections with a secure screw locking system and high-quality materials.
