4m Gigaspeed X10D GS10E Cat6A UTP Double ended non-plenum Modular Patch Cable in Green Colour
Cat6a UTP Cable
Overview

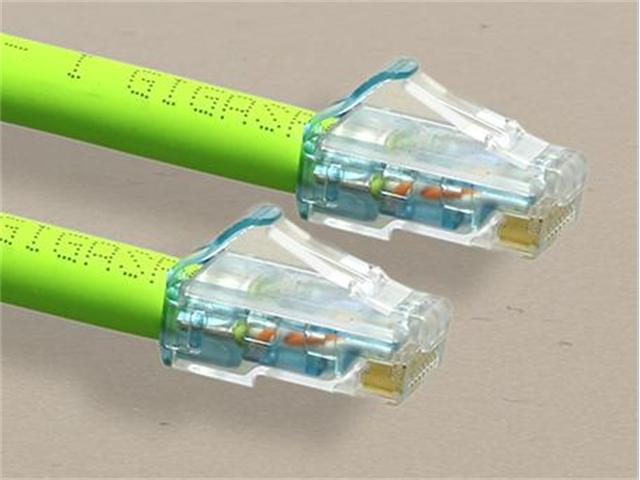

The high performance GS10E modular patch cord family has a patent pending plug design featuring a distinctive aqua sled and anti-snag latch for easy and rapid field identification. The GS10E plug exhibits a dramatic reduction in variation of performance via the innovative plug design. Double ended GS10E and single ended GS11710E are available. The GS117-10E will support both equipment cord and consolidation point applications
Features
- Electrical performance guaranteed to meet or exceed the channel specifications of TIA 568-B.2-1 Category 6, ISO/IEC 11801 Class E, and the current TIA Category 6A and proposed ISO/IEC Class E Ed. 2.1 up to 500 MHz when used as part of a GigaSPEED X10D Channel in registered SYSTIMAX installations
- UL listed (CM)
- Can support network line speeds up to at least 10 gigabits per second
- Certified component of an integrated GigaSPEED X10D Solution
- Qualifies for the SYSTIMAX SCS 20-Year Extended Product Warranty and Applications Assurance when included as part of a registered SYSTIMAX GigaSPEED X10D channel
Specifications
- Packaged Quantity : 1
- Technology : UTP
- Enclosure Colour : Green
- Network Cable Type : Patch cable - CAT 6a
- Wiring Scheme : T568B
- Wires per Cable : 8
- Pairs per Cable : 4
Networking
- Network Cable Type : patch cable
Manufacturer Warranty
- Service & Support : 20 years warranty
Environmental Parameters
- Min Operating Temperature : 14 °F
- Max Operating Temperature : 140 °F
Downloads
Additional Information
| Device |
Cable |
| Type |
Cat6A | UTP | Double Ended |
| Highlights |
10 Gbps Network Capability |
| Housing |
Green |
| Cable Length |
4m |
| Cable End 1 |
RJ-45 |
| Cable End 2 |
RJ-45 |
Upgrade your network with the CMS CPC7732-04F014 4m Gigaspeed X10D Cat6A UTP Patch Cable. Designed for high performance, it supports speeds up to 10 Gbps, ensuring fast and reliable connectivity. Its innovative design features an anti-snag latch for easy handling, and it’s UL listed for safety. Perfect for robust network setups, this cable also qualifies for a 20-year warranty when part of a registered SYSTIMAX installation.
