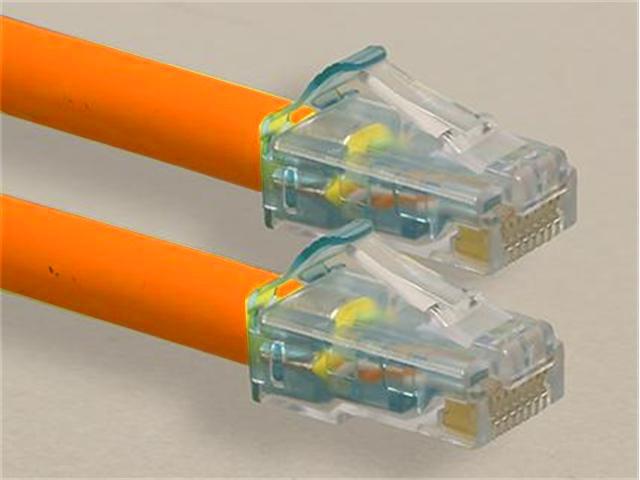

4m Gigaspeed X10D GS10E Cat6A UTP Double ended non-plenum Modular Patch Cable in Orange Colour
Cat6a UTP Cable
Overview
The high performance GS10E modular patch cord family has a patent pending plug design featuring a distinctive aqua sled and anti-snag latch for easy and rapid field identification. The GS10E plug exhibits a dramatic reduction in variation of performance via the innovative plug design. Double ended GS10E and single ended GS11710E are available. The GS117-10E will support both equipment cord and consolidation point applications
Features
- Electrical performance guaranteed to meet or exceed the channel specifications of TIA 568-B.2-1 Category 6, ISO/IEC 11801 Class E, and the current TIA Category 6A and proposed ISO/IEC Class E Ed. 2.1 up to 500 MHz when used as part of a GigaSPEED X10D Channel in registered SYSTIMAX installations
- UL listed (CM)
- Can support network line speeds up to at least 10 gigabits per second
- Certified component of an integrated GigaSPEED X10D Solution
- Qualifies for the SYSTIMAX SCS 20-Year Extended Product Warranty and Applications Assurance when included as part of a registered SYSTIMAX GigaSPEED X10D channel
Specifications
- Packaged Quantity : 1
- Technology : UTP
- Enclosure Colour : Orange
- Network Cable Type : Patch cable - CAT 6a
- Wiring Scheme : T568B
- Wires per Cable : 8
- Pairs per Cable : 4
Networking
- Network Cable Type : patch cable
Manufacturer Warranty
- Service & Support : 20 years warranty
Environmental Parameters
- Min Operating Temperature : 14 °F
- Max Operating Temperature : 140 °F
Downloads
Additional Information
| Device |
Cable |
| Type |
Cat6A | UTP | Double Ended |
| Highlights |
10 Gbps Network Capability |
| Housing |
Orange |
| Cable Length |
4m |
| Cable End 1 |
RJ-45 |
| Cable End 2 |
RJ-45 |
Upgrade your networking with the CMS CPC7732-06F014 4m Gigaspeed X10D Cat6A UTP patch cable. Designed for high-performance, this orange cable supports speeds up to 10 Gbps, ensuring fast and reliable connectivity. Its innovative plug design allows for easy identification, while meeting stringent TIA and ISO standards. Perfect for both equipment cords and consolidation points, this cable is backed by a 20-year warranty, delivering exceptional value for your networking needs.
