CMS CPC7732-07F019

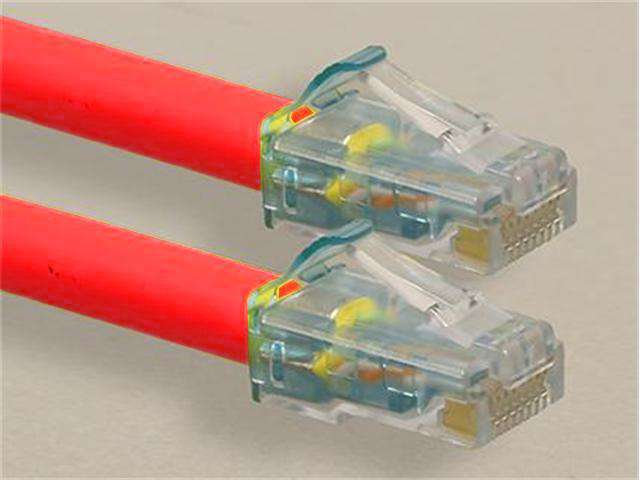

The high performance GS10E modular patch cord family has a patent pending plug design featuring a distinctive aqua sled and anti-snag latch for easy and rapid field identification. The GS10E plug exhibits a dramatic reduction in variation of performance via the innovative plug design. Double ended GS10E and single ended GS11710E are available. The GS117-10E will support both equipment cord and consolidation point applications

• Electrical performance guaranteed to meet or exceed the channel specifications of TIA 568-B.2-1 Category 6, ISO/IEC 11801 Class E, and the current TIA Category 6A and proposed ISO/IEC Class E Ed. 2.1 up to 500 MHz when used as part of a GigaSPEED X10D Channel in registered SYSTIMAX installations
• UL listed (CM)
• Can support network line speeds up to at least 10 gigabits per second
• Certified component of an integrated GigaSPEED X10D Solution
• Qualifies for the SYSTIMAX SCS 20-Year Extended Product Warranty and Applications Assurance when included as part of a registered SYSTIMAX GigaSPEED X10D channel

• Packaged Quantity : 1
• Technology : UTP
• Enclosure Colour : Red
• Network Cable Type : Patch cable - CAT 6a
• Wiring Scheme : T568B
• Wires per Cable : 8
• Pairs per Cable : 4

Networking

• Network Cable Type : patch cable

Manufacturer Warranty

• Service & Support : 20 years warranty

Environmental Parameters

• Min Operating Temperature : 14 °F
• Max Operating Temperature : 140 °F
