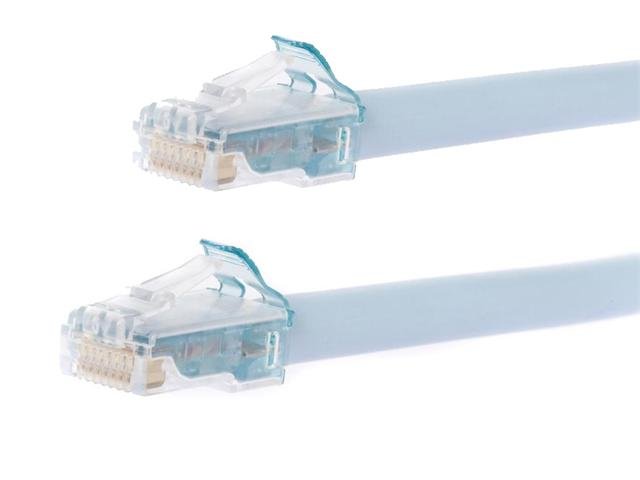

4m Gigaspeed X10 360GSE10 Cat6A Solid LSZH Modular Patch Cable in Light Blue Colour
Cat6a UTP Cable
Specifications
Electrical Specifications
- ANSI/TIA Category : 6A
- DC Resistance, maximum : 0.30 ohm
- Safety Voltage Rating : 300 V
Environmental Specifications
- Environmental Space : Low Smoke Zero Halogen (LSZH)
- Flammability Rating : UL 94 V-0
- Operating Temperature : -10 °C to +60 °C (+14 °F to +140 °F)
- Safety Standard : cETL | ETL
General Specifications
- Cable Type : U/UTP (Unshielded)
- Interface, connector A : RJ45 plug
- Interface, connector B : RJ45 plug
- Jacket Color : Light blue
- Brand : GigaSPEED X10D® | SYSTIMAX 360™ | SYSTIMAX®
- Interface Feature, Connector A : Standard
- Interface Feature, Connector B : Standard
- Package Quantity : 1
- Pairs, quantity : 4
Mechanical Specifications
- Conductor Type : Solid
- Material Type : Copper alloy | Polycarbonate
- Outlet/Module Contact Plating : Precious metals
- Plug Insertion Life, minimum : 750 times
- Plug Retention Force, minimum : 133 N | 30 lbf
- Wiring : T568B
Regulatory Compliance/Certifications
- Agency : Classification
- RoHS 2011/65/EU : Compliant
- ISO 9001:2008 : Designed, manufactured and/or distributed under this quality management system
Downloads
Additional Information
| Device |
Cable |
| Type |
Cat6A | UTP | Solid |
| Housing |
Light Blue |
| Cable Length |
4m |
| Cable End 1 |
RJ-45 |
| Cable End 2 |
RJ-45 |
Upgrade your network with the CMS CPCSSZ2-02F014, a 4m Gigaspeed X10 Cat6A patch cable. Designed for high-speed performance, this light blue LSZH cable ensures low smoke and zero halogen emissions, making it perfect for safe installations. Experience enhanced connectivity with durable RJ45 connectors, ideal for both home and office environments.
