CMS CPCSSZ2-03F007

SKU: CMS CPCSSZ2-03F007

BRAND: Systimax

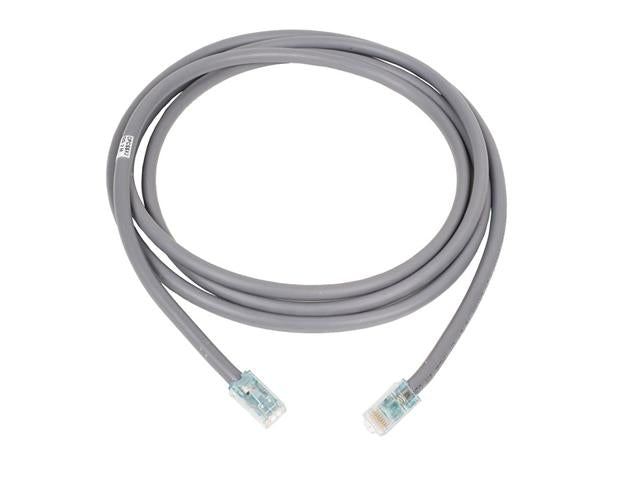

5m Gigaspeed X10 360GSE10 Cat6A Solid LSZH Modular Patch Cable in Grey Colour

Cat6a UTP Cable

Specifications

Electrical Specifications

  • ANSI/TIA Category : 6A
  • DC Resistance, maximum : 0.30 ohm
  • Safety Voltage Rating : 300 V

Environmental Specifications

  • Environmental Space : Low Smoke Zero Halogen (LSZH)
  • Flammability Rating : UL 94 V-0
  • Operating Temperature : -10 °C to +60 °C (+14 °F to +140 °F)
  • Safety Standard : cETL | ETL

General Specifications

  • Cable Type : U/UTP (Unshielded)

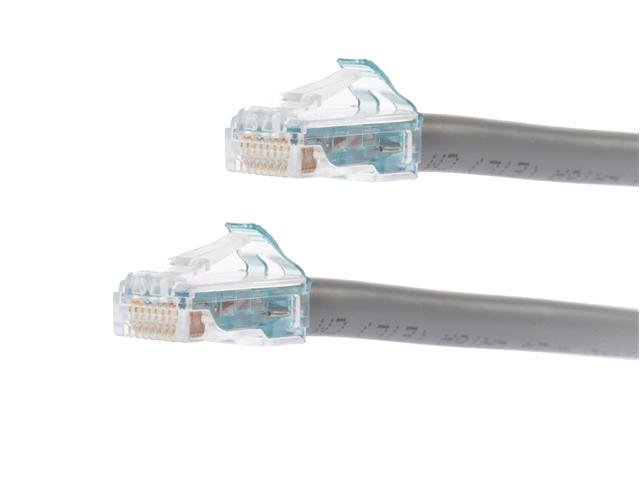

  • Interface, connector A : RJ45 plug
  • Interface, connector B : RJ45 plug
  • Jacket Color : Light blue
  • Brand : GigaSPEED X10D® | SYSTIMAX 360™ | SYSTIMAX®
  • Interface Feature, Connector A : Standard
  • Interface Feature, Connector B : Standard
  • Package Quantity : 1
  • Pairs, quantity : 4

Mechanical Specifications

  • Conductor Type : Solid
  • Material Type : Copper alloy | Polycarbonate
  • Outlet/Module Contact Plating : Precious metals
  • Plug Insertion Life, minimum : 750 times
  • Plug Retention Force, minimum : 133 N | 30 lbf
  • Wiring : T568B

Regulatory Compliance/Certifications

  • Agency : Classification
  • RoHS 2011/65/EU : Compliant
  • ISO 9001:2008 : Designed, manufactured and/or distributed under this quality management system

Downloads

Additional Information

Device Cable
Type Cat6A | UTP | Solid
Cable End 1 RJ-45
Cable End 2 RJ-45
