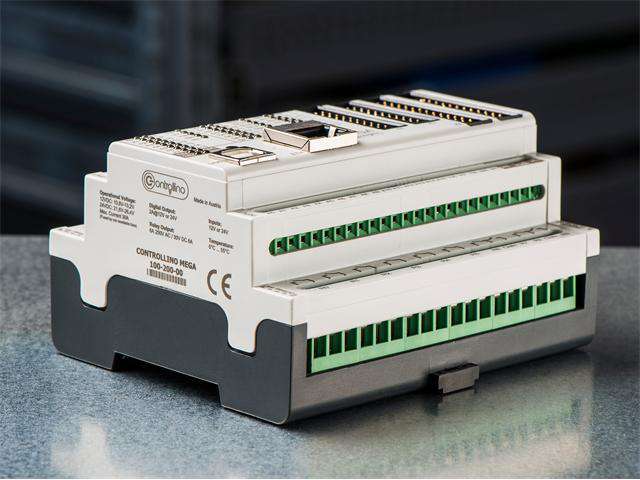

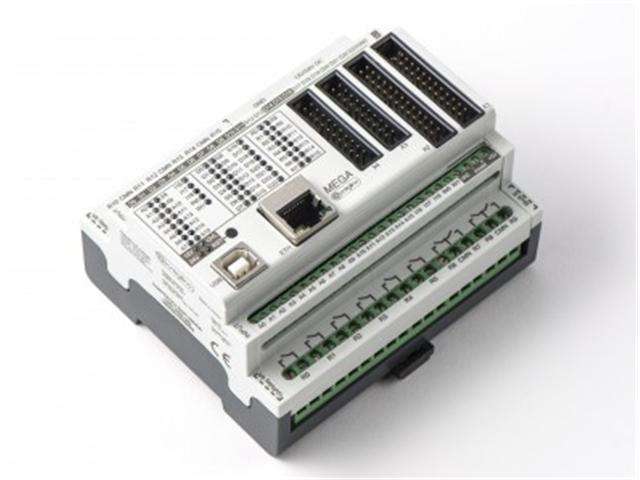

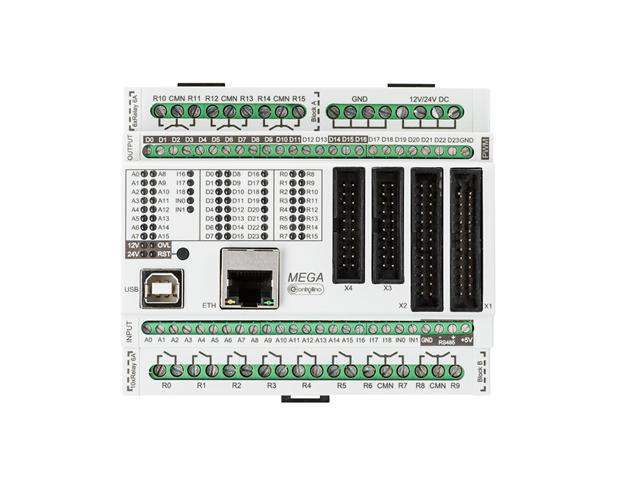

CONTROLLINO MEGA

SKU: CONTROLLINO MEGA

BRAND: Arduino

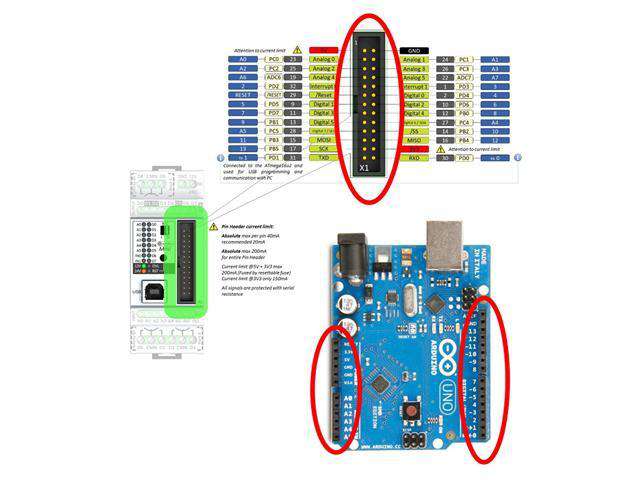

Open-Source PLC Arduino Compatible

Overview

Features

Specification

  • Microcontroller : ATmega2560 atmel-logo-small
  • Clock Speed : 16 MHz
  • RTC
  • Ethernet Connector
  • 2x Serial Interface
  • 1x RS485 Interface
  • 1x I2C Interface
  • 1x SPI Interface
  • Input current Max : 30A
  • 16x Relays Outputs : 230V / 6A
  • 21x Analog/Digital Inputs
  • 12x Digital Outputs : High Side Switch – 2A @12V or 24V
  • 12x Digital Outputs : Half-Bridge – 2A @12V or 24V
