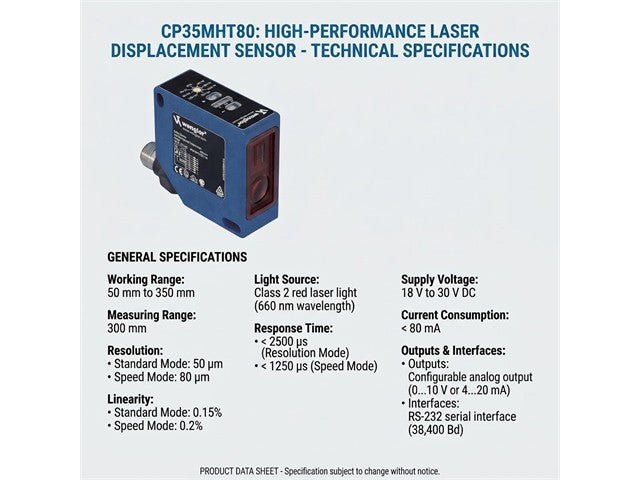

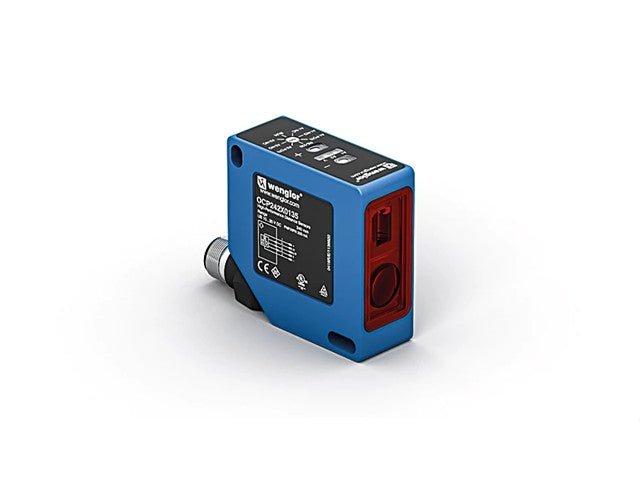

Laser Triangulation Distance Sensor, 50–350 mm Working Range, 300 mm Measuring Range, red 660 nm Class 2 Laser, 18–30 V DC Supply, 800 Measurements/s, 0–10 V / 4–20 mA Analogue Output, RS-232 Interface, M12 8-Pin Connection and IP67 Housing.

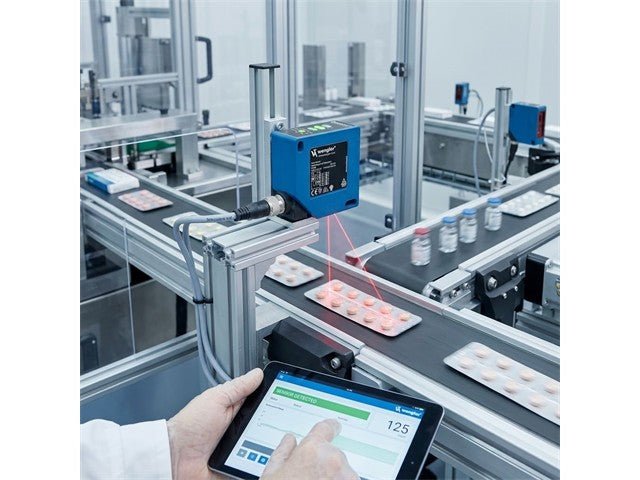

Laser Triangulation Distance Sensor
Feature(s)
- Response time: < 1250 µs (speed-mode)
- Zoom function
- Measured value independent of material, color and brightness
- CMOS line array
- Laser light
Specifications
|
Optical Data
|
|
Working Range
|
50 ... 350 mm
|
|
Measuring Range
|
300 mm
|
|
Reproducibility maximum
|
1,200 µm
|
|
Reproducibility: 1 Sigma
|
400 µm
|
|
Linearity Deviation
|
1,000 µm
|
|
Light Source
|
Laser, red
|
|
Wavelength
|
660 nm
|
|
Service Life (T = +25 °C)
|
100,000 h
|
|
Laser Class (EN 60825-1)
|
2
|
|
Max. Ambient Light
|
10,000 Lux
|
|
Light Spot Diameter
|
see table 1
|
|
Electrical Data
|
|
Supply Voltage
|
18 ... 30 V DC
|
|
Current Consumption (Ub = 24 V)
|
< 80 mA
|
|
Measuring Rate
|
800 /s
|
|
Measuring Rate (Resolution-Mode)
|
400 /s
|
|
Response Time
|
1,250 µs
|
|
Response Time (Resolution Mode)
|
< 2,500 µs
|
|
Temperature Drift
|
< 75 µm/K
|
|
Temperature Range
|
-25 ... 50 °C
|
|
Analog Output
|
0...10 V
|
|
Load Current Voltage Output
|
< 1 mA
|
|
Current Output Load Resistance
|
< 500 Ohm
|
|
Interface
|
RS-232
|
|
Transmission rate
|
38,400 Bd
|
|
Protection Class
|
III
|
|
FDA Accession Number
|
0820590-000
|
|
Mechanical Data
|
|
Setting Method
|
Teach-In
|
|
Housing Material
|
Plastic, ABS
Plastic, PC
|
|
Optic Cover
|
Plastic, PMMA
|
|
Degree of Protection
|
IP67
|
|
Connection Type
|
Plug variant
|
|
Connection
|
M12 × 1; 8-pin
|
|
Weight
|
45 g
|
|
Safety-relevant Data
|
|
MTTFd (EN ISO 13849-1)
|
713.97 a
|
|
General Data
|
|
Scope of delivery
|
1 × initial start-up instructions
1 × laser warning sign
1 × sensor
|
|
Output
|
|
Error Output
|
yes
|
|
Analog Output
|
yes
|
|
RS-232 Interface
|
yes
|
|
Adjustable parameters
|
|
Analog output
|
0...10 V
4...20 mA
|
|
Other parameters
|
Scale analog output
Exposure time
Filter
Speed mode
Resolution mode
Laser light
|
Additional Information
Discover the CP35MHT80 Laser Triangulation Distance Sensor, designed for precision with a 50–350 mm working range and rapid 800 measurements per second. This reliable sensor features an IP67 housing, ensuring durability in challenging environments while delivering accurate measurements unaffected by material or color. Ideal for various applications, it offers both analog and RS-232 outputs, making integration seamless for your projects. Elevate your automation solutions with this high-performance sensor today!
