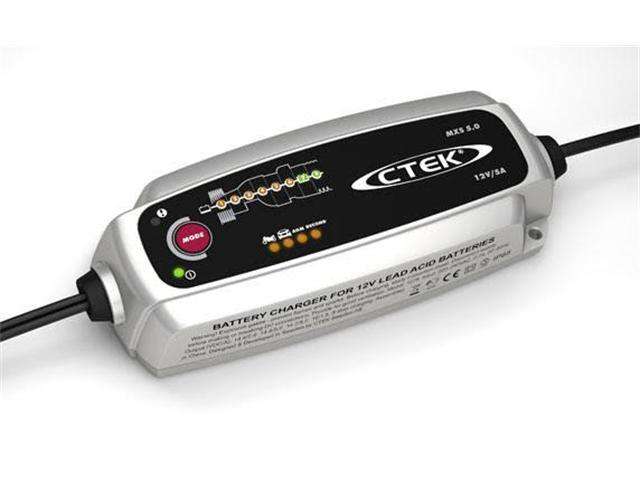

CTEK MXS5.0

SKU: CTEK MXS5.0

BRAND: Ctek


12V 5A IP65 Battery Charger for Lead Acid Batteries with 8 step Automatic Charging Cycle for Optimal Charging and up to 160Ah Maintenance Charging

Overview

The MXS 5.0 is an advanced microprocessor controlled battery charger with automatic temperature compensation built in providing unrivalled performance on lead-acid batteries from 1.2Ah up to 110Ah. The MXS 5.0 solves a broad range of battery problems and is the ideal charger for the user with high demands. Features of the MXS 5.0 include diagnosis of battery condition to establish if it can receive and retain charge, patented automatic desulphation step and a special reconditioning step that will revive and restore deeply discharged and stratified batteries. AGM option is perfect for maximising performance and life of most Stop - Start batteries. The built in temperature compensation ensures ideal charging performance even in the most extreme conditions. Patented Float/Pulse maintenance makes the MXS 5.0 ideal for long - term maintenance. The entire process of battery testing, charging and maintenance is easily followed on the clear LED display.

The MXS 5.0 is a fully automatic "connect and forget" 12V charger with 8 charging steps and offers selectable SMALL BATTERY, and NORMAL BATTERY programs. The RECOND and AGM options operate individually or together in both SMALL BATTERY and NORMAL BATTERY programs providing great flexibility for the user. Wide charging range on all lead-acid battery types from 1.2Ah up to110Ah with additional maintenance capability to 160Ah. Splash proof and dust proof (IP65). The MXS 5.0 is easy and safe to use, protects vehicle electronics, is spark-free, reverse polarity protected and short circuit proof. The MXS 5.0 features a 5- year warranty.

Features

Specification

  • Volt : 12V
  • Rated Voltage AC : 220–240VAC, 50–60Hz
  • Charging voltage
    • Small, Normal : 14.4V
    • Cold/AGM : 14.7V
    • Recond : 15.8V
  • Min Battery Voltage : 2.0V
  • Charging Current : 5A max
  • Current, Mains : 0.6A rms (at full charging current)
  • Back Current Drain : <1Ah/month
  • Ripple : <4%
  • Ambient Temperature : -20°C to 50°C, output power is reduced automatically at high temperatures
  • Charger Type : 8 step, fully automatic charging cycle
  • Battery Types : All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
  • Battery Capacity : 1.2–110Ah up to 160Ah for maintenance
  • Dimensions : 168x65x38 mm
  • Insulation Class : IP65
  • Weight : 0.6kg
  • Temperature Compensation : Built in charge voltage compensation according to ambient temperature
