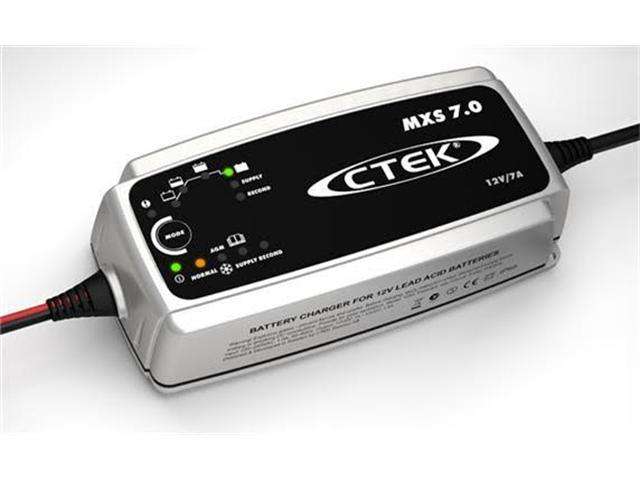

CTEK MXS7.0

SKU: CTEK MXS7.0

BRAND: Ctek


12V 7A IP65 Battery Charger for 12V Lead Acid Batteries with 8Step Charging Cycle for optimal battery life and up to 225Ah Maintenance Charging

Overview

The MXS 7.0 is the perfect universal 12V charger. It is ideal for charging larger batteries such as caravan, RV, boat and car batteries. These types of vehicles often demand features that can solve a broad range of battery-related problems. The MXS 7.0 offers features such as battery diagnosis that shows if a battery can receive and retain a charge, a special reconditioning function that restores stratified and deeply discharged batteries, unique maintenance charging, a mode for optimised charging during cold winter days and the charging of demanding AGM batteries (i.e. Optima). It also has a power supply mode which allows the battery to be disconnected from the vehicle without losing important configurations.

Features

  • Fully automatic charging and maintenance in 8 steps maximizes battery life and performance
  • Numerous accessories simplifies using the same charger for multiple batteries
  • Water-resistant so that the solution could be taken to the problem even if it rains or snows
  • Power Supply that simplifies battery replacement without losing vehicle memory
  • Patented maintenance charge for a unique combination of maximized life and performance
  • Recondition of deep discharged batteries
  • Patented desulphation that extends the battery life
  • No sparks, short-circuit proof and reverse-polarity protected for untroubled usage
  • Automatic detection of end-of-life batteries that eliminates surprises

Specification

  • Volt : 12V
  • Rated Voltage AC : 220–240VAC, 50–60Hz
  • Charging voltage :
    • Normal : 14.4V
    • Cold/AGM : 14.7V
    • Recond : 15.8V
    • Supply : 13.6V
  • Min battery voltage : 2.0V
  • Charging current : 7A max
  • Current, mains : 1.2A rms (at full charging current)
  • Back current drain : <1Ah/month
  • Ripple : <4%
  • Ambient temperature : -20°C to +50°C, output power is reduced automatically at high temperatures
  • Charger type : 8 step, fully automatic charging cycle
  • Battery types : All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
  • Battery capacity : 14–150Ah up to 225Ah for maintenance
  • Dimensions : 191 x 89 x 48mm (L x W x H)
  • Insulation class : IP65
  • Weight : 0.8kg
