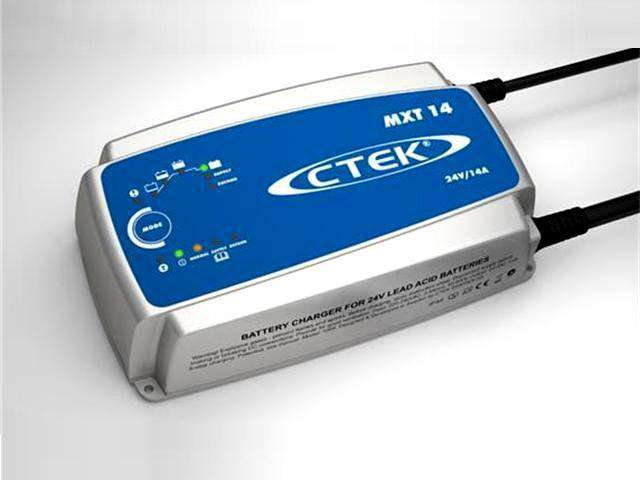

CTEK MXT14

The MXT 14 is a professional 24V charger. It is developed for commercial vehicles where the batteries are put under considerable strain and is ideal for busses, trucks and CV workshops. The MXS 14 is equipped with all necessary features and functions to solve a broad range of battery related problems. It offers features such as battery diagnosis that shows if a battery can receive and retain a charge, a special reconditioning function that restores stratified and deeply discharged batteries, unique maintenance charging and a temperature sensor for optimised charging regardless of the weather conditions. It also has a power supply mode which allows the battery to be disconnected from the vehicle without losing important configurations.

• Temperature compensated and fully automatic charging and maintenance in 8 steps maximizes battery life and performance
• Power Supply that simplifies battery replacement without losing vehicle memory
• Patented maintenance charge for a unique combination of maximized life and performance
• Recondition of deep discharged batteries
• Patented desulphation that extends the battery life
• No sparks, short-circuit proof and reverse-polarity protected for untroubled usage
• Automatic detection of end-of-life batteries that eliminates surprises

• Volt : 24V
• Rated Voltage AC : 220–240VAC, 50–60Hz
• Charging Voltage
• Min Battery Voltage : 2.0V
• Charging Current : 14A max
• Current, Mains : 2.9A rms (at full charging current)
• Back Current Drain : <1Ah/month
• Ripple : <4%
• Ambient Temperature : -20°C to +50°C, output power is reduced automatically at high temperatures
• Charger Type : 8 step, fully automatic charging cycle
• Battery Types : All types of 24V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
• Battery Capacity : 28–300Ah up to 500Ah for maintenance
• Dimensions : 235 x 130 x 65mm (L x W x H)
• Insulation Class : IP44
• Weight : 1.9kg

User Manual - CTEK MXT14

Datasheet - CTEK MXT14
