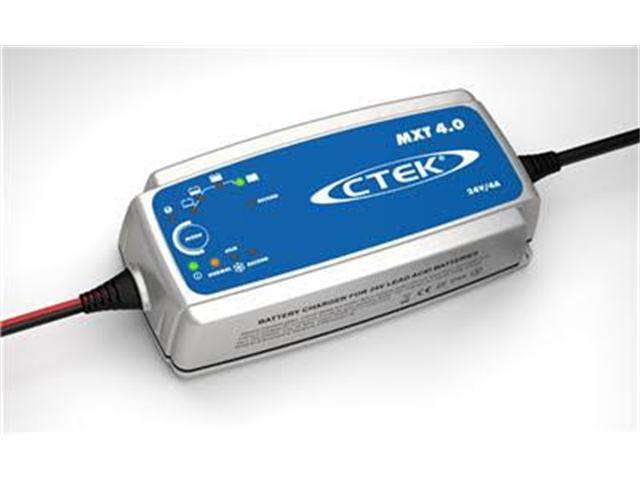

CTEK MXT4.0

The MXT 4.0 is a cost-effective charger, suitable for smaller 24V batteries. The MXT 4.0 is ideal for maintenance charging of larger fleets with 24V vehicles, backup systems, piste machinery and wheelchairs, etc. The MXT 4.0 is equipped with all necessary features and functions to solve a broad range of battery related problems. It offers features such as battery diagnosis that shows if a battery can receive and retain a charge, a special reconditioning function that restores stratified and deeply discharged batteries, unique maintenance charging, a mode for optimised charging during cold winter days and the charging of demanding AGM batteries (i.e. Optima).

• Water-resistant so that the solution could be taken to the problem even if it rains or snows
• Patented maintenance charge for a unique combination of maximized life and performance
• Recondition of deep discharged batteries
• Patented desulphation that extends the battery life
• No sparks, short-circuit proof and reverse-polarity protected for untroubled usage
• Automatic detection of end-of-life batteries that eliminates surprises

• Volt : 24V
• Rated Voltage AC : 220–240VAC, 50–60Hz
• Charging voltage
• Normal : 28.8V
• Cold/AGM : 29.4V
• Recond : 31.4V
• Min Battery Voltage : 2.0V
• Charging Current : 4A max
• Current, Mains : 1.2A rms (at full charging current)
• Back Current Drain : <1Ah/month
• Ripple : <5%
• Ambient Temperature : -20°C to 50°C, output power is reduced automatically at high temperatures
• Charger Type : 8 step, fully automatic charging cycle
• Battery Types : All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
• Battery Capacity : 8–100Ah up to 250Ah for maintenance
• Dimensions : 191 x 89 x 48mm
• Insulation Class : IP65
• Weight : 0.8kg
