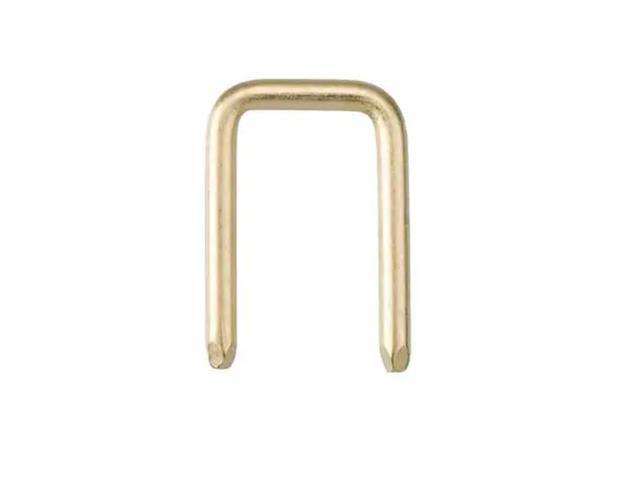

D3080-05

Harwin D308 Series 1mm Ø Shorting Link Plugs

D308 series 1mm diameter insulated and un-insulated shorting link plugs with a variety of leg pitches and insulation colours. These D308 insulated shorting link plugs have a high performance gold plated brass finish and a colour coded PBT UL94V-0 housing. The insulated versions are not designed for direct soldering to the the PCB but can be used with PCB sockets in hardware programming applications. The D308 un-insulated links can be soldered directly onto a PCB for permanent linking.

• Type : Uninsulated
• Number of Contacts : 2
• Pitch : 5.08mm
• Gender : Male
• Number of Rows : 1
• Length : 6.08mm
• Depth : 1mm
• Contact Material : Brass
• Contact Plating : Gold
• Orientation : Straight
