DB-E38-PCB - Sound, Buzzer & Microphone Components -

DB-E38-PCB - Sound, Buzzer & Microphone Components -

DB-E38-PCB

SKU: DB-E38-PCB

BRAND: Communica

In Stock
R 59.80_{(inc VAT)}
R 52.00_{(ex VAT)}

Collections: Passive Components

Type: Sound, Buzzer & Microphone Components

Category: Buzzer Piezoelectric

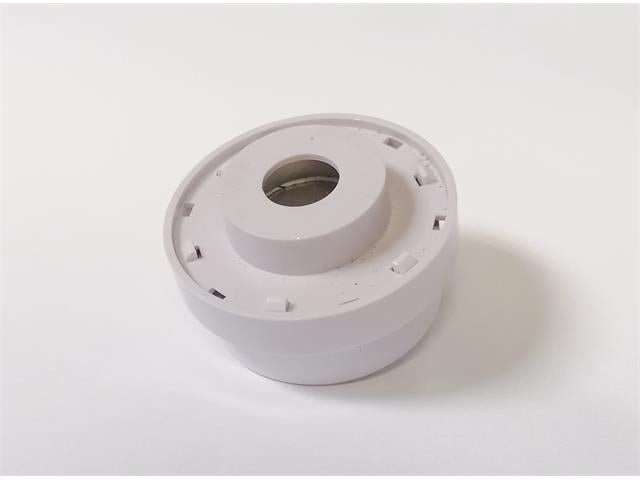

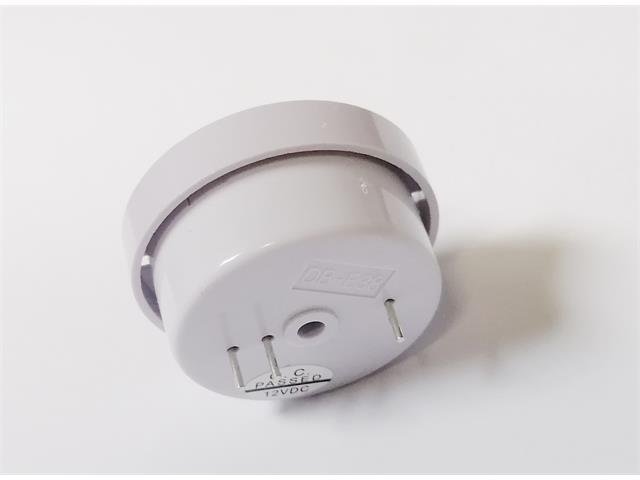

Buzzer Piezo Round 12VDC 35mA 105dB P/M PCB

12VDC Buzzer Piezo Round

Specifications

Operating Voltage Range ( VDC ) : 3.0 ~ 18.0
Rated Voltage ( VDC ) : 12.0
Max. Rated Current ( mA ) : 35.0
Min. Sound Output ( dBA / 30.0 cm ) : 105.0
Frequency ( Hz ) : 2900.0 ± 500.0
Tone Nature Single
Operating Temperature : ( °C ) - 20.0 ~ + 70.0
Storage Temperature ( °C ) : - 30.0 ~ + 80.0
Terminal : Pins
Housing Material Flame Retardant : ABS
Weight ( g ) : 28.0

Downloads

Datasheet - DB-E38-PCB

Additional Information

Device	Buzzer Piezo
Type	12VDC
