DB-E948

SKU: DB-E948

BRAND: Communica

In Stock
R 38.53_{(inc VAT)}
R 33.50_{(ex VAT)}

Collections: Passive Components

Type: Sound, Buzzer & Microphone Components

Category: Buzzer Piezo Transducers

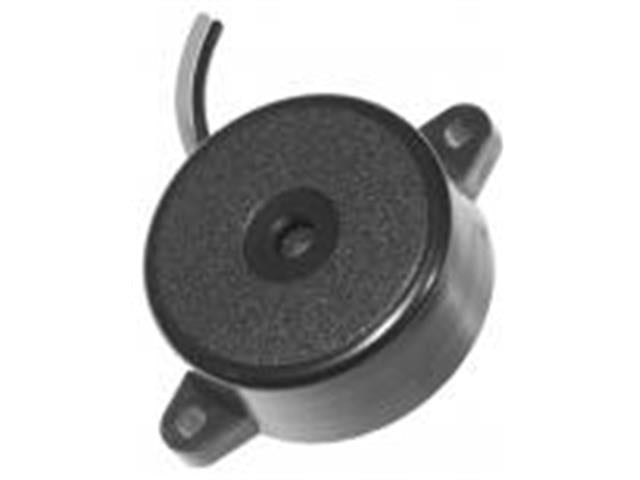

Buzzer Piezo Round 12VDC (OV=3-24VDC) 10MA 85dB with Lead Single Tone 23x9,8mm

12VDC Buzzer Piezo Round

Specifications

Operating Voltage Range ( VDC ) : 3.0 ~ 24.0
Rated Voltage ( VDC ) : 12.0
Max. Rated Current ( mA ) : 10.0
Min. Sound Output ( dBA/ 30.0 cm ) : 85.0
Frequency ( Hz ) : 3500.0 ± 500.0
Tone Nature : Single
Operating Temperature ( °C ): - 20.0 ~ + 60.0
Stroage Temperature ( °C ) - 30.0 ~ + 70.0
Terminal : Leadwire ( UL1095 , AWG#28 )
Housing Material : ABS
Weight ( g ) : 3.5

Downloads

Datasheet - DB-E948

Additional Information

Device	Buzzer
Type	Piezo \| Round
