DBX05 - Sound, Buzzer & Microphone Components -

DBX05

SKU: DBX05

BRAND: Communica


In Stock
R 16.39 (inc VAT)
R 14.25 (ex VAT)

Collections: Passive Components

Type: Sound, Buzzer & Microphone Components

Category: Buzzer Magnetic

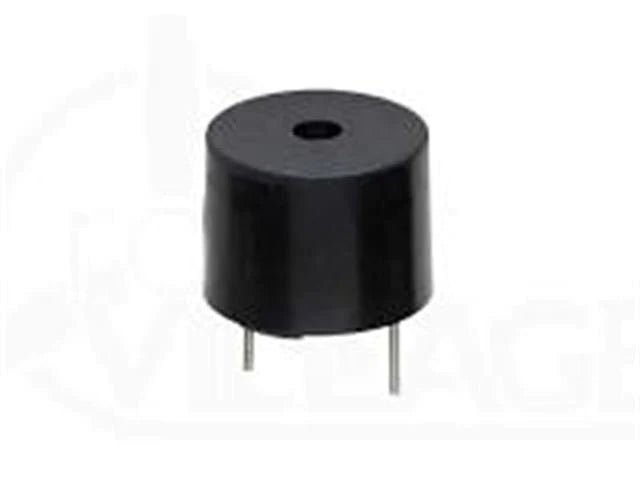

Buzzer Round PCB 5VDC (OV=3-8VDC) 1/2Duty 40MA 85dB/10cm 12x9mm P=6,5mm

Round PCB Buzzer

Specifications

  • Operating Voltage Range ( V ) : 3.0 ~ 8.0
  • Rated Voltage ( V ) : 5.0 + Max.
  • Rated Current ( mA ) : 40.0
  • Coil Resistance Ω : 47.0 ± 5.0
  • Coil Impedance Ω : 80 + Min.
  • Sound Output at 10 cm ( dBA ) : 85
  • Resonant Frequency ( Hz ) : 2400
  • Operating Temperature ( °C ) : - 40 ~ + 85
  • Terminal : Pin
  • Housing Material : Noryl
  • Weight ( g ) : 2.0

Additional Information

Device Buzzer
Type Round | PCB
