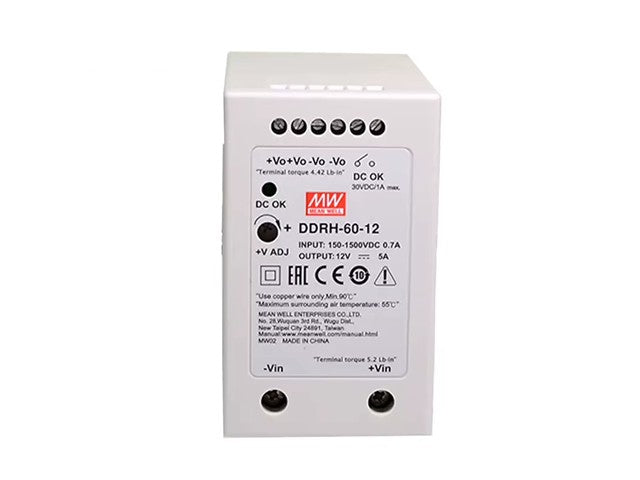

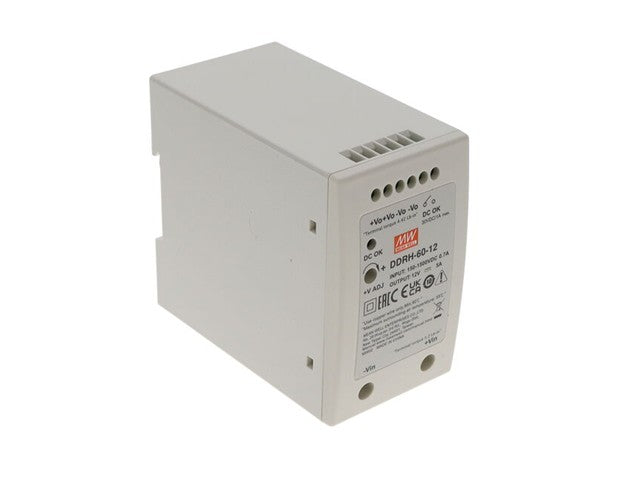

DDRH-60-12

Name: DDRH-60-12 - Communica [Part No: DDRH-60-12]
Brand: Mean Well
SKU: DDRH-60-12
Price: 1325 ZAR
Availability: OutOfStock

SKU: DDRH-60-12

BRAND: Mean Well

Sold Out
R 1,523.75_{(inc VAT)}
R 1,325.00_{(ex VAT)}

Collections: Power

Type: Power Supplies

Category: DC DC Converters

Meanwell DC-DC Converter Din Rail Type, I/P Ultra Wide Voltage Range:150V-1.5kV, O/P Voltage Adjustable Range: 12-15V 0 ~ 5A 60W

Din Rail DC-DC Converter

Specifications

Isolation:	Isolated
Number of Outputs:	1 Output
Output Power:	60 W
Input Voltage - Min:	150 V
Input Voltage - Max:	1.5 kV
Output Voltage-Channel 1:	12 V
Output Current-Channel 1:	5 A
Isolation Voltage:	500 V
Length:	105 mm
Width:	57 mm
Height:	93.5 mm
Industry:	Industrial
Adjust Type:	Adjustable
Application:	Industrial Automation, Surveillance, Telecommunication
Compliance:	EN-61000-6-2
Input Voltage:	150 V to 1.5 kV
Mounting Style:	DIN Rail

Downloads

Datasheet - DDRH-60-12

Additional Information

Device

DC-DC Converter

The DDRH-60-12 Meanwell DC-DC Converter offers reliable power conversion with an ultra-wide input voltage range of 150V to 1.5kV. Perfect for industrial automation and telecom applications, this adjustable converter delivers up to 60W with 5A output, ensuring optimal performance and efficiency. Elevate your equipment's reliability with this essential DIN rail-mounted solution.
