DFR ARDUINO ROMEO 328

Name: DFR ARDUINO ROMEO 328 - Communica [Part No: DFR ARDUINO ROMEO 328]
Brand: DFRobot
SKU: DFR ARDUINO ROMEO 328
Price: 517.56 ZAR
Availability: InStock

SKU: DFR ARDUINO ROMEO 328

BRAND: DFRobot

In Stock
R 595.19_{(inc VAT)}
R 517.56_{(ex VAT)}

Collections: IoT, Internet of things

Type: Development / Microcontroller Boards

Category: Discontinued Item, Iot, Microcontroller Boards

DFR0004 Romeo-all in one Controller (Arduino Compatible Atmega 328)

Overview

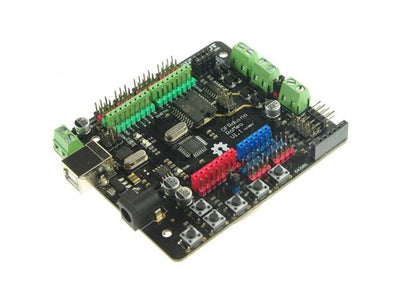

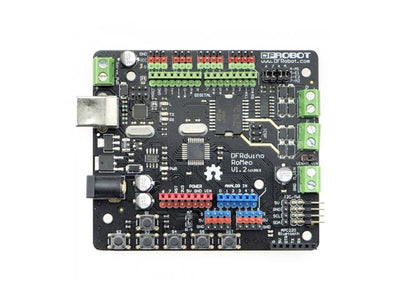

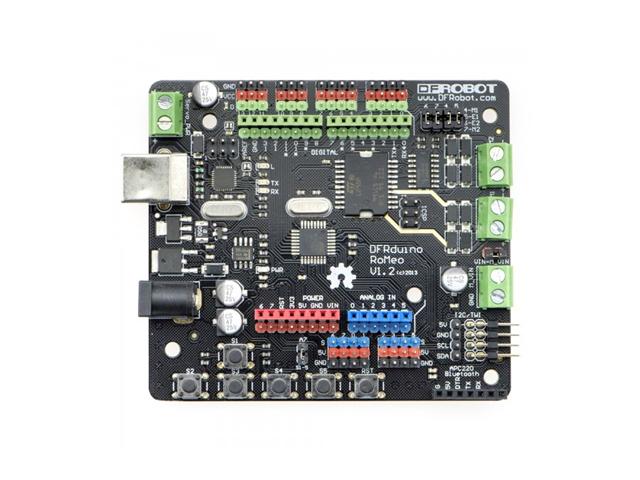

RoMeo is an All-in-One Arduino compatible microcontroller especially designed for robotics applications from DFRobot
The Romeo benefits from the Arduino open source platform, it is supported by thousands of open source codes, and can easily be expanded with Arduino Shields
The integrated 2 way DC motor driver and wireless socket allows you to start your project immediatly without the need for an additional motor driver or wirless shield

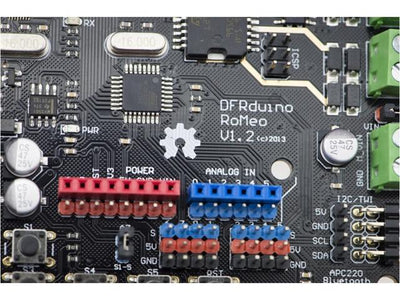

The Romeo v1.1 differs from the preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega8U2 programmed as a USB-to-serial converter. All the pins of the new Romeo use colored pin headers(FIT0084-R,FIT0084-B,FIT0084-G)
Commonly used : Green for digital I/O;Blue for Analog I/O;Red for Voltage

Specifications

DC Supply : USB Powered or External 7V~12V DC
DC Output : 5V /3.3V DC and External Power Output
Microcontroller : Atmega328
Bootloader : Arduino Uno
Compatible with the Arduino Uno pin mapping
8 Channels 10-bit Analog I/O
USB interface
5 key inputs
Auto sensing/switching power input
ICSP header for direct program download
Serial Interface TTL Level
Support Male and Female Pin Header
Integrated sockets for APC220 RF Module and DF-Bluetooth Module
Three I2C Interface Pin Sets(two 90°pin headers)
Two way Motor Driver with 2A maximum current
Gold plating pcb board
Size : 90x80x14mm
Weight : 60 gram

Downloads

Layout - RoMeo V1.1

Additional Information

Keywords	arduino, dfrobot, romeo, atmega328
Device	Microcontroller
References	Product Page
