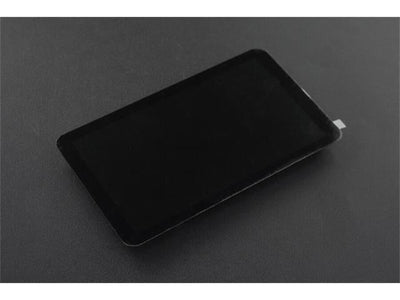

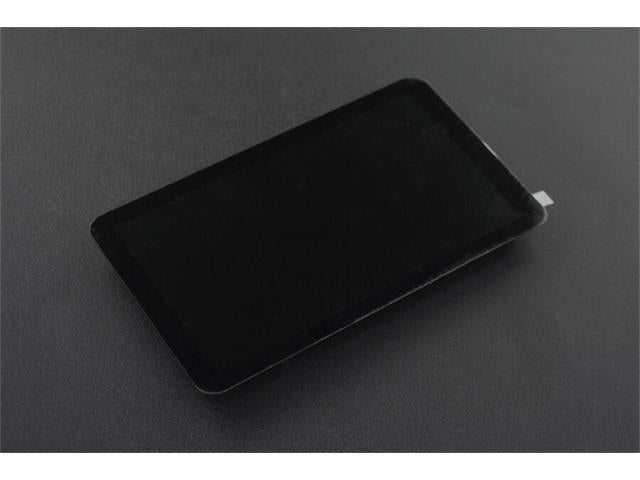

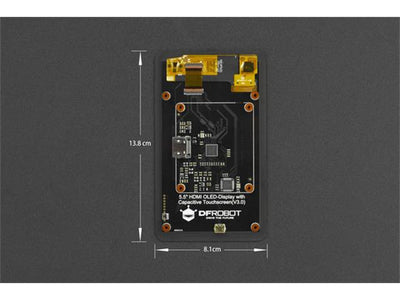

This is a 5.5" FHD AMOLED-Display module with Capacitive Touchscreen. It has 1920×1080 HDMI high-definition output and comes with a capacitive touch panel on its screen. The touch panel supports multi-touch which can simultaneously identify 10 touch points at most. Besides, the USB touchscreen adopts DFRobot driver-free technology, so without the special requirement of installing drivers, the touchscreen can be used as easy as a keyboard or a mouse, plug and play.

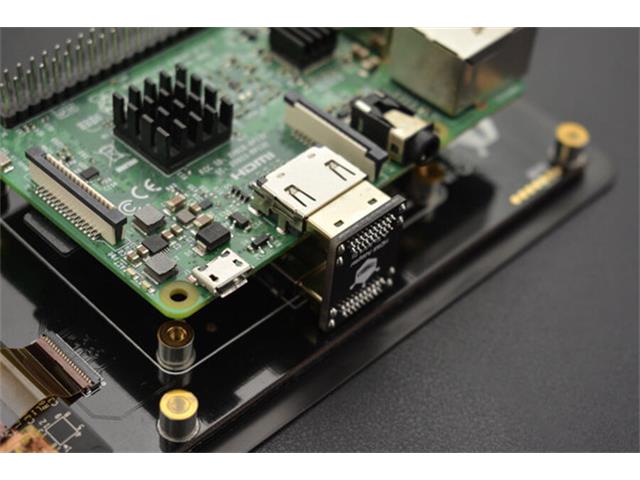

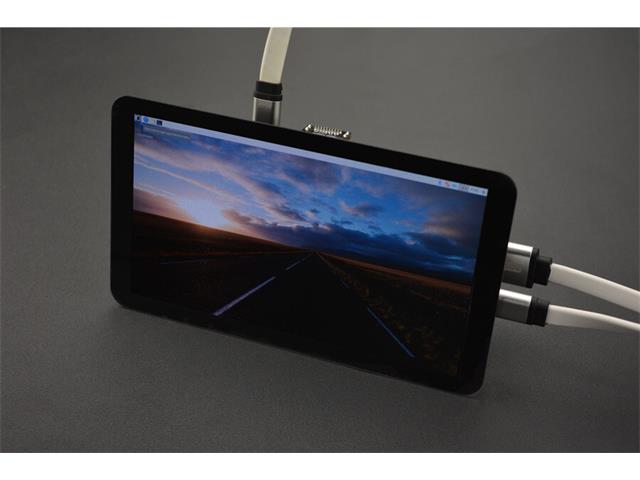

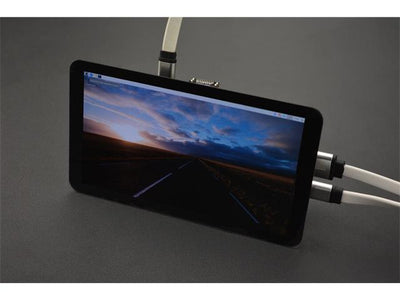

The screen supports two operating system: Windows and Linux (touchscreen cannot be used on MACOS). It can work with Lattepanda, Raspberry Pi and other devices with HDMI output. We have designed some special holes to make it compatible with Raspberry Pi, so you can install Pi controller on the back of the display directly.

There is no need to provide an external power supply for the screen as it can be directly powered by USB port. In addition, the hardware backlight of this display can be adjusted through host systems, convenient to use.

• Capacitive Touchscreen, Support Multi-Touch
• HDMI Interface
• USB Power Supply, Driver-free Installation
• Software Backlight Adjustment

 NOTE

• V1.0 adopts HDMI C-type interface, V2.0 uses HDMI A-type interface.
• Since HDMI interface has limited power supply ability, V2.0 only supports USB power supply.
• Due to the difference of the touchscreen drivers on various systems, we have tested that, On MacOS, the product can be only used as a display, touchscreen is not available.
• The structure of the current touchscreen is only perfectly suitable for Raspberry Pi, for connecting with other host devices, you need to buy a suitable HDMI cable.
• Not support for using on Raspberry Pi Zero

• Operating Voltage: 5V
• Operating Current: 700mA
• Refresh Frequency: 60Hz
• Screen Resolution: 1920 x 1080
• Viewing Angle: 160°
• Video Interface: HDMI
• Touch Interface: Micro-USB
• Support Multi-touch Points: 10
• Display Area: 68.3mm x 121.42mm/2.69x4.78"

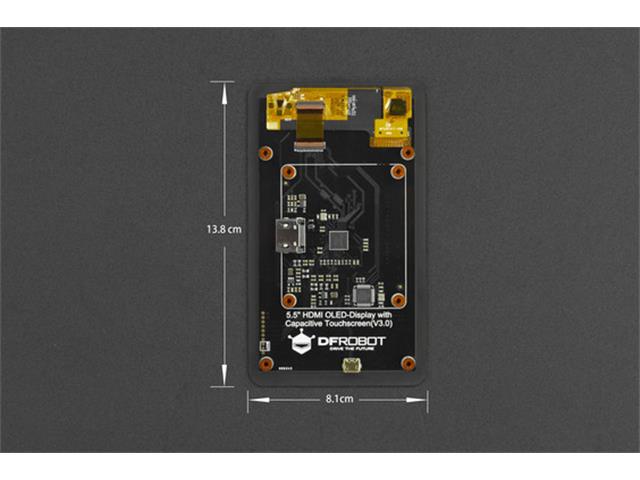

• Outline Dimension: 124mm x 71mm/4.88x3.19"

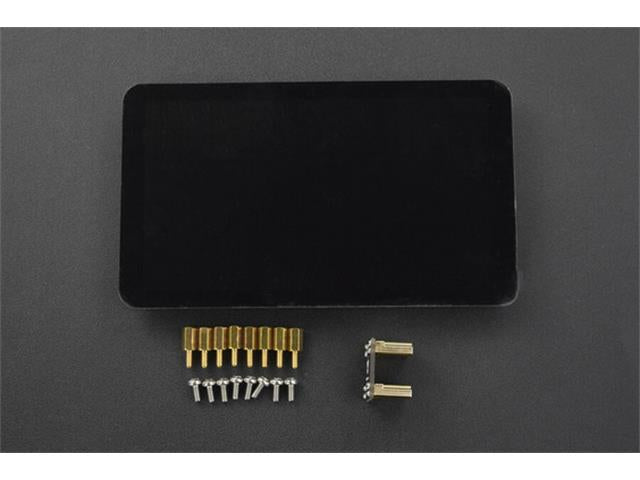

• Mounting Hole Size: M2.5
• Outside Mounting Hole Position: 95mm x 64mm/3.74x2.52"
• Inside Mounting Hole Position: 58mm x 49mm/2.28x1.93"
