DG411DJ

Name: DG411DJ - Communica [Part No: DG411DJ]
Brand: Vishay
SKU: DG411DJ
Price: 24.70 ZAR
Availability: OutOfStock

SKU: DG411DJ

BRAND: Vishay

Sold Out
R 28.41_{(inc VAT)}
R 24.70_{(ex VAT)}

Collections: Semiconductors

Type: Logic ICs

Category: Multiplexer & Demultiplexer ICs

I.C. Linear

Specifications

Switch Circuit	SPST - NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	35Ohm
Voltage - Supply, Single (V+)	5V ~ 44V
Voltage - Supply, Dual (V±)	±5V ~ 20V
Switch Time (Ton, Toff) (Max)	175ns, 145ns
Charge Injection	5pC
Channel Capacitance (CS(off), CD(off))	9pF, 9pF
Current - Leakage (IS(off)) (Max)	250pA
Crosstalk	-85dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Through Hole

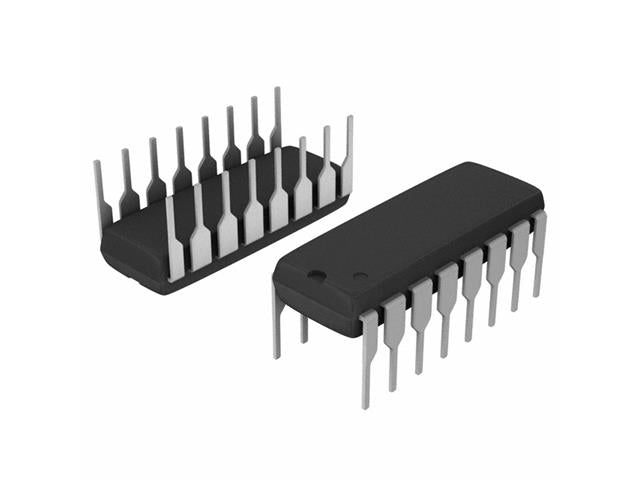

Package / Case	16-DIP (0.300", 7.62mm)

Downloads

Datasheet - DG411DJ

Additional Information

Device

IC

Unlock precision in your projects with the DG411DJ I.C. Linear Switch. Designed for efficiency, this versatile multiplexer offers a rapid switch time of 175ns and minimal on-state resistance, ensuring reliable performance even in demanding conditions. With a wide voltage supply range and robust operating temperature, the DG411DJ is your go-to solution for seamless circuit management. Enhance your designs today!
