DGM ENERGY METER AC 220-450V 10A

Name: DGM ENERGY METER AC 220-450V 10A - Communica [Part No: DGM ENERGY METER AC 220-450V 10A]
Brand: Communica
SKU: DGM ENERGY METER AC 220-450V 10A
Price: 413.04 ZAR
Availability: OutOfStock

SKU: DGM ENERGY METER AC 220-450V 10A

BRAND: Communica

Sold Out
R 475.00_{(inc VAT)}
R 413.04_{(ex VAT)}

Collections: Test & Measurement

Type: Panel Meters

Category: Din Rail AC Digital Volt and Ammeter

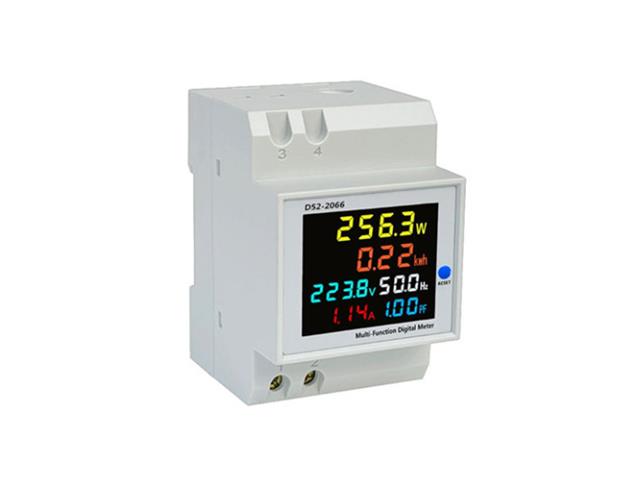

D52-2066 DIN Rail Digital Display Multi-Function Meter Simultaneously Displays 6 Parameters- AC Voltage, AC Current, Active Power, Power Factor, Frequency and Electric Energy

DIN Rail Digital Display Multi-Function Meter

Overview

The guide rail type digital display multi-function meter simultaneously displays 6 parameters such as AC voltage, AC current, active power, power factor, frequency and electric energy on the instrument. The meter uses a color full-view high-definition LCD display to display the measurement results.

Specifications

Measurement accuracy: 1%±2 words
Measuring range: AC voltage AC40-300V
Alternating current: AC0-100A, current display resolution is 0.01A
Power frequency: 45Hz-65Hz
Power factor: 0.00-1.00PF
Active power: the measurement range is 0-45000W, the display resolution between 0-9999.9W is 0.1W, and the rest is 1W
Electricity: the measurement range is 0-99999kwh, the minimum display resolution of 0-999.99kwh is 0.01kwh
1000.0-9999.9kwh minimum display resolution is 0.1kwh
The minimum resolution of 10000.0-99999kwh is 1kwh
Measuring speed: about 2 times per second

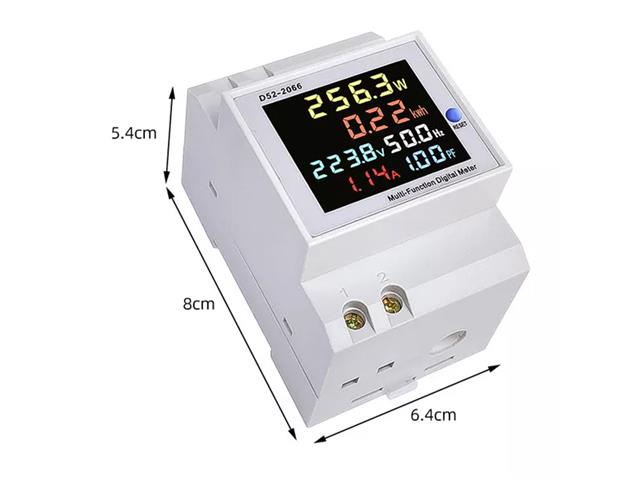

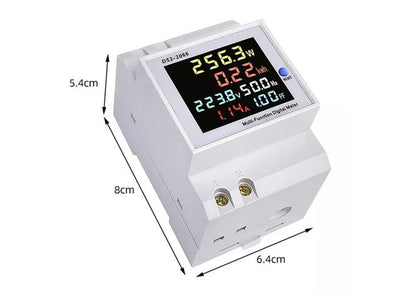

Dimensions: 54*80*64mm
Installation method: rail type

Additional Information

Device	Meter
Type	DIN Rail \| Digital Display \| Multi-Function
