DGM LED DRIVER 2A ADJ CC&CV

SKU: DGM LED DRIVER 2A ADJ CC&CV

BRAND: Communica


LED Driver I/P: 5-30VDC O/P: 1.25V-26VDC ADJ 0.15A-2A ADJ Constant Current and Voltage

Overview

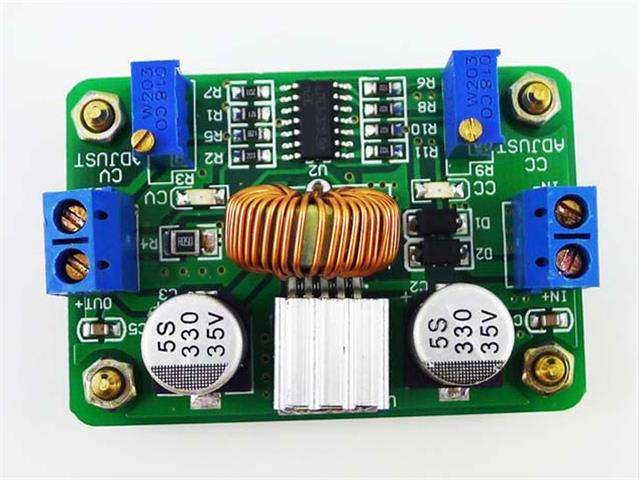

DC DC step down converter Voltage regulator Adjustable LED Driver power supply 5-30V to 1.25-24V 2A MAX

This universal driver module can provide adjustable range from 20mA 1.25V to the max 2.6A 26V. It is a super LED driver which can drive common LEDs, including the 0.5W 1W 3W 5W 10W LEDs.It can be as a constant current and constant voltage module for your solar battery system.It can be as a charging module, which can charge for lithium ion battery, Ni-MH battery, Ni-C battery accurately.

Features

Specification

  • Dimension : 3.8cm x 5.5cm x 2.3cm
  • Input Voltage : DC5 - 30V
  • Output Voltage : DC1.25 - 26V (In buck mode, input voltage will be at least 2V higher than output voltage)
  • Output Current : DC 0.2A - 2A
  • Full Load Efficiency : 85%
  • Constant Voltage Ripple : 50MV
  • Ripple Frequency : 52 kh
