DGU WILD THUMPER MOTOR 34:1+ENCO

Name: DGU WILD THUMPER MOTOR 34:1+ENCO - Communica [Part No: DGU WILD THUMPER MOTOR 34:1+ENCO]
Brand: Dagu
SKU: DGU WILD THUMPER MOTOR 34:1+ENCO
Price: 286.96 ZAR
Availability: OutOfStock

SKU: DGU WILD THUMPER MOTOR 34:1+ENCO

BRAND: Dagu

Sold Out
R 330.00_{(inc VAT)}
R 286.96_{(ex VAT)}

Collections: 3D Printing & Accessories, DIY Kits, IoT, Internet of things, Robotics

Type: Motors, Motor Drivers & Controllers

Category: Iot, Thumper Motor

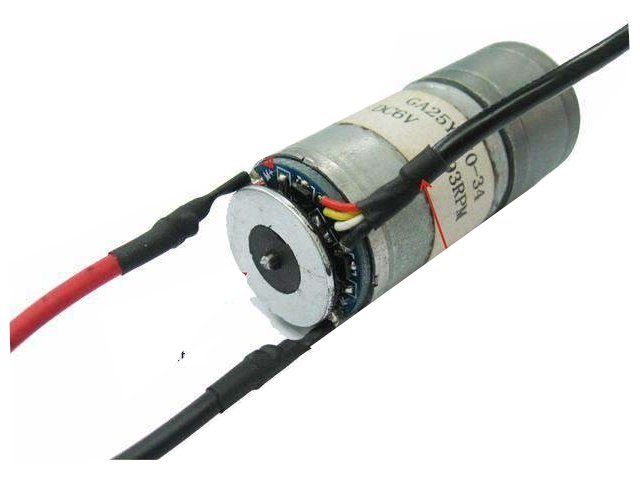

Wild Thumper Metal Gear Motor + Encoder with 34:1 Gearbox 6VDC/285rpm, Stall current 5.5A, max 10000rpm

Overview

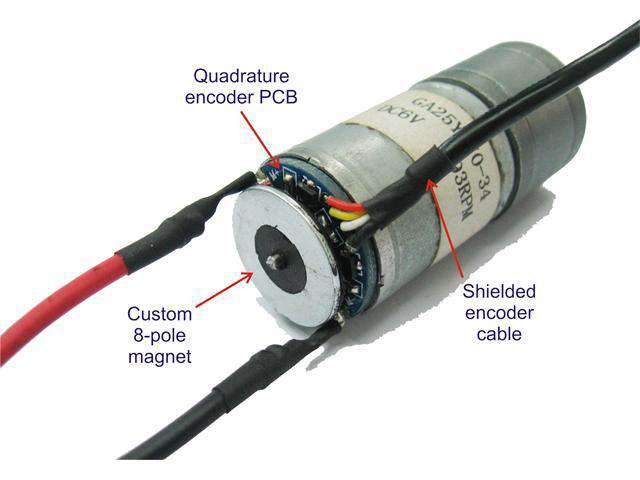

Encoders use custom made 8-pole Magnets and 2 Hall-effect Sensors to provide 2 Square Waves, 90 degree out of phase with a total of 16 State changes per Motor Revolution.

These Encodoers can operate with both 3.3V and 5V Logic sustems and have Reverse Polarity Protection built into the Sensors.

This is a powerfull motor fitted with a 34:1 gearbox. The gears are all steel and the outputshaft is 4mm diameter. With this motors you can upgrade your "Wild Thumper" to get a higher top speed.

Features

Specification

Voltage : 6V (7.5V max)
No Load Current : 350mA
Stall Current : 5.5A
Stall Torque : 8.8Kg/cm
Motor RPM : 10,000 +/- 5%
RPM after Gear Reduction : 294 +/- 5%
