Dahua HDCVI Bullet Camera 5MP 2.8mm Lens, 30m IR, Built-in Microphone, CVI/TVI/AHD/CVBS Selectable Via DIP Switch, DWDR, 3D DNR, Auto ICR/Colour/B&W 3D DNR, 12VDC, IP67
5MP IR HDCVI Fixed-focal Bullet Camera
Feature(s)
- High Performance - New ISP brings high performance image
- High Usability - Standard-equipped with DIP switch
- High Compatability - Compatible with TVI audio, smart hybrid light and 3K
- High Frame Rate - 5MP@25fps output provides a smoother visual experience
- High Definition - Real 5MP 16:9 output brings more image details

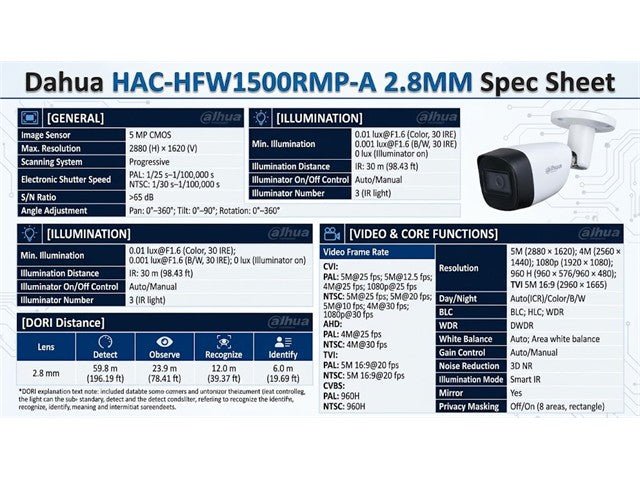

Specifications
Camera
|
Image Sensor
|
5 MP CMOS
|
|
Max. Resolution
|
2880 (H) × 1620 (V)
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
|
|
Min. Illumination
|
0.01 lux@F1.6 (Color, 30 IRE)
0.001 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
|
|
S/N Ratio
|
>65 dB
|
|
Illumination Distance
|
IR: 30 m (98.43 ft)
|
|
Illuminator On/Off Control
|
Auto/Manual
|
|
Illuminator Number
|
3 (IR light)
|
|
Angle Adjustment
|
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
|
Lens
|
Lens Type
|
Fixed-focal
|
|
Lens Mount
|
M12
|
|
Focal Length
|
2.8 mm
|
|
Max. Aperture
|
F1.6
|
|
Field of View
|
2.8 mm: H: 113.3°; V: 62.1°; D: 134.3°
|
|
Iris Control
|
Fixed
|
|
Close Focus Distance
|
2.8 mm: 0.8 m (2.62 ft)
|
|
DORI Distance
|
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|
2.8 mm
|
59.8 m
( 196.19 ft)
|
23.9 m
( 78.41 ft)
|
12.0 m
( 39.37 ft)
|
6.0 m
( 19.69 ft)
|
|
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
|
|
Video
|
Video Frame Rate
|
CVI:
PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 5M@20 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps
NTSC: 4M@30 fps
TVI:
PAL: 5M 16:9@20 fps
NTSC: 5M 16:9@20 fps
CVBS:
PAL: 960H
NTSC: 960H
|
|
Resolution
|
5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960 H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665)
|
|
Day/Night
|
Auto(ICR)/Color/B/W
|
|
BLC
|
BLC; HLC; WDR
|
|
WDR
|
DWDR
|
|
White Balance
|
Auto;Area white balance
|
|
Gain Control
|
Auto/Manual
|
|
Noise Reduction
|
3D NR
|
|
Illumination Mode
|
Smart IR
|
|
Mirror
|
Yes
|
|
Privacy Masking
|
Off/On (8 areas, rectangle)
|
Certification
|
Certifications
|
CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
|
Port
|
Video Output
|
Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
|
Power
|
Power Supply
|
12 VDC (±30%)
|
|
Power Consumption
|
Max 3.7 W (12 VDC, IR on)
|
Environment
|
Operating Temperature
|
–40 °C to +60 °C (–40 °F to +140 °F)
|
|
Operating Humidity
|
<95% (RH), non-condensing
|
|
Storage Temperature
|
–40 °C to +60 °C (–40 °F to +140 °F)
|
|
Storage Humidity
|
<95% (RH), non-condensing
|
|
Protection
|
IP67
|
|
Anti-corrosion Level
|
Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
|
Structure
|
Casing Material
|
Metal
|
|
Product Dimensions
|
166.4 mm × 69.7 mm × 70.0 mm (6.55" × 2.74" × 2.75") (L × W × H)
|
|
Net Weight
|
0.35 kg (0.77 lb)
|
|
Gross Weight
|
0.45 kg (0.99 lb)
|
|

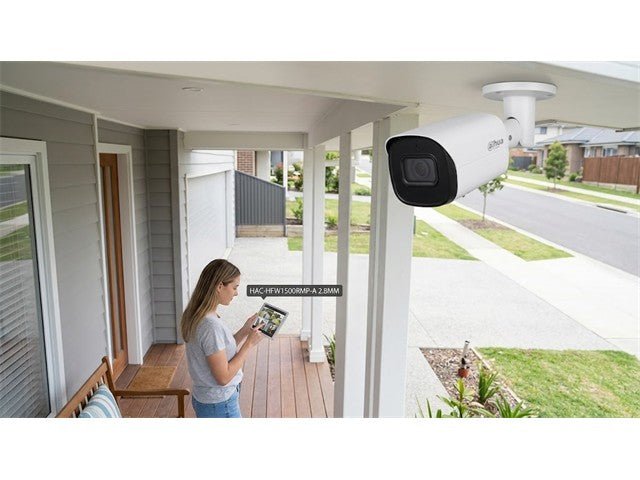

Installation
|
Wall mount; ceiling mount; vertical pole mount
|
